SELECT A DIAGRAM

01 - Backguard Parts-glass


02 - Gas Components


03 - Lower Oven Cabinet Assy


04 - Lower Oven Electrical Components


05 - Lower Storage Drawer

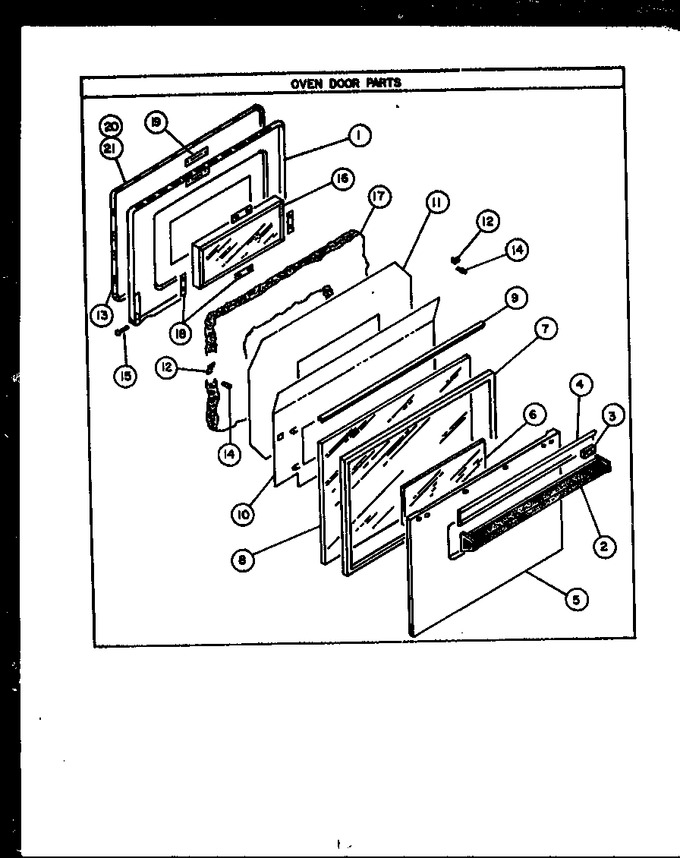

06 - Oven Door Parts


07 - Page 1


08 - Upper Oven Electrical Components


09 - Upper Oven Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	0063517		Sub 63517y, Door Backer		Appelez-nous	-
2	0068150		Handle, Door		Appelez-nous	-
3	Y0079978		Spacer Door Handle		Appelez-nous	-
7	0063804		Frame, Door, Black		Appelez-nous	-
8	Y0063650		Panel, Black Glass		Appelez-nous	-
9	0063195		Trim, Black		Appelez-nous	-
10	0062782		Air Baffle W/o Window		Appelez-nous	-
11	Y0063656		Plate, Insulation		Appelez-nous	-
12	Y0062439		Support Bracket, Glass		Appelez-nous	-
13	0068429		Clip, Tinnerman		Appelez-nous	-
14	0042014		Cork Bumper		Appelez-nous	-
15	0091632		Rivet		Appelez-nous	-
16	0041491		Window Assy		Appelez-nous	-
17	Y0063664		Sub 41966, Insulation		Appelez-nous	-
18	Y0040992		Sub 52629, Retainer, Glass		Appelez-nous	-
19	Y0040748		Sub 52039, Latch Plate		Appelez-nous	-
20	0071637		Dr. Gasket		Appelez-nous	-
