Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 0096761 Trim Frame, Control Panel Appelez-nous -
2 Y0063095 Glass, Control Panel Appelez-nous -
3 Y0071820 Indicator Light Appelez-nous -
4 0063441 Knob, Clock Appelez-nous -
5 0062134 Clock, 60 Hertz Appelez-nous -
6 Y0096700 Mtg Clips, Control Box Appelez-nous -
7 0063009 Control Box Appelez-nous -
8 0092372 Screw 6x1/4 Phil Pan Hd Appelez-nous -
9 M0282009 Nut   (Replaces: Y0097885) Special Order $ 12.06

10 0063100 Knob, Oven Thermostat Appelez-nous -
11 0065904 Bracket, Control Panel Mtg. Appelez-nous -
12 Y0072005 Thermostat, Upper Oven Appelez-nous -
13 0072004 Mtg Plate, Upper Oven Thermo Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

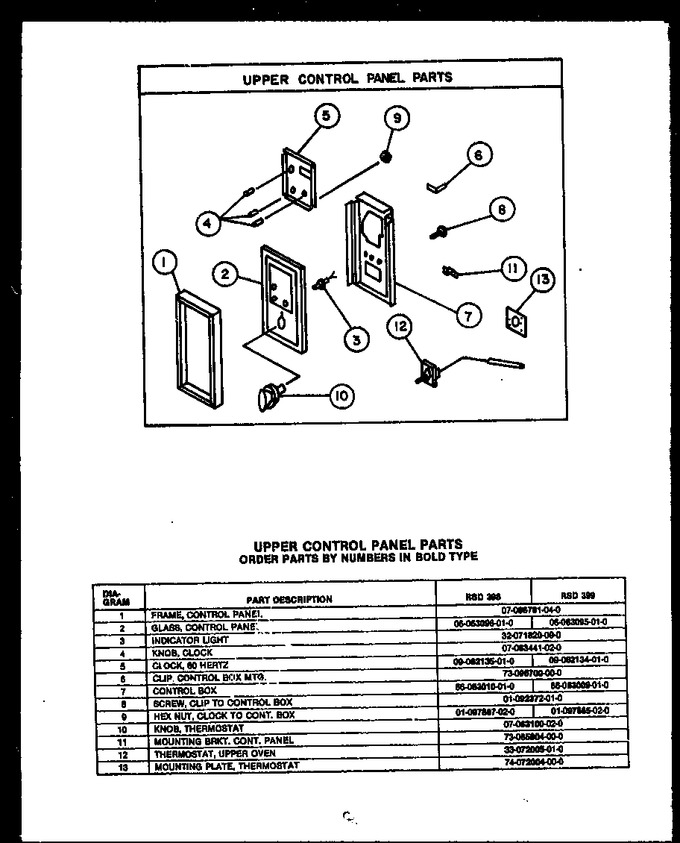

Diagram for RSD399
