View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Cover
02 - Cabinet/drum
03 - Front Panel/lint Trap
04 - Control Panel
05 - Motor
SELECT A DIAGRAM
New Model Search:

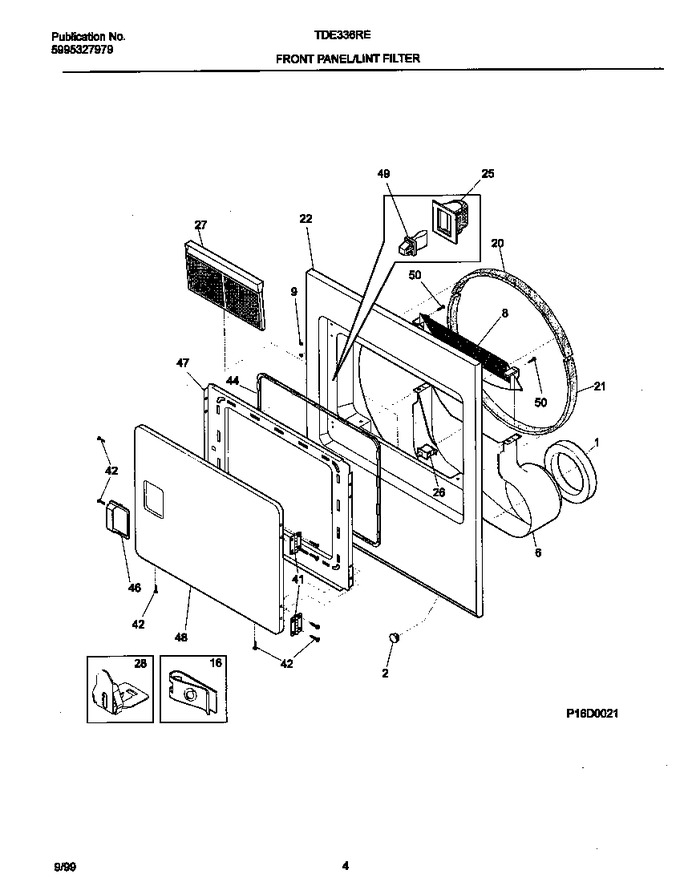

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 134417000 | Seal-air Duct (Replaces: 131581400) |
|
Immediately | $ 9.22 | ||||
| 2 | 131432301 | Plug-almond |
|
- | |||||
| 6 | 131621900 | Duct-air |
|
- | |||||
| 8 | 131622202 | Cover-lint Trap (Replaces: 131622201) |
|
$ 94.82 | |||||
| 9 | 131633201 | Plug-almond |
|
- | |||||
| 16 | 131063700 | Clip-wiring |
|
$ 18.11 | |||||
| 20 | DE790 | Glide-drum (Replaces: 5303937139) |
|
Immediately | $ 40.53 | ||||
| 21 | 5303283286 | Seal-basket Lower |
|
$ 48.04 | |||||
| 22 | 131845923 | Panel-front No Lite Alm |
|
- | |||||
| 25 | 131658800 | Catch-door |
|
Immediately | $ 68.38 | ||||
| 26 | 134813600 | Switch-door W/o Lite (Replaces: 131843100) |
|
Immediately | $ 43.09 | ||||
| 27 | 131450300 | Lint Trap |
|
Immediately | $ 30.47 | ||||
| 28 | 5303281074 | Clip-guide,(2) |
|
$ 18.27 | |||||
| 41 | 134222900 | Hinge-door (Replaces: 131627500) |
|
$ 22.68 | |||||
| 42 | 134156200 | Screw, Flat Head, 8-18ab X 0.44, Cr/sq Drive (Replaces: 131209600) |
|
Immediately | $ 14.89 | ||||
| 44 | 137551901 | Gasket-door (Replaces: 131129900) |
|
Immediately | $ 41.00 | ||||
| 46 | 131644701 | Door Handle-almond |
|
- | |||||
| 47 | 131844105 | Door-inner Alm Fs Dryer |
|
- | |||||
| 48 | 131789304 | Door-outer Almond |
|
- | |||||
| 49 | 5303207102 | Strike Door (Replaces: 5303211430) |
|
Immediately | $ 19.85 | ||||
| 50 | 131303300 | Screw-lock, Ph Ab, 10-16 X .50 |
|
- | |||||
| *77163 | 5308027429 | Adhesive, High Temp |
|
Immediately | $ 60.25 | ||||
| *77164 | 131474700 | Insulation |
|
$ 33.67 |
