02 - Cabinet And Component Parts
03 - Door Parts
04 - Console And Control Parts

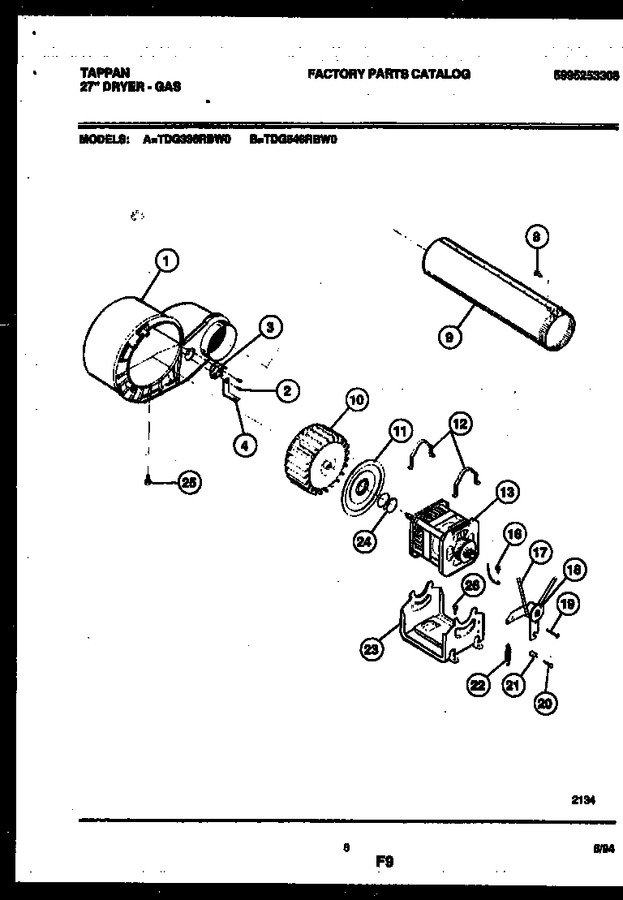

05 - Blower And Drive Parts
06 - Burner, Igniter And Valve
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5303270858 | Housing, Fan |
|
- | |||||
| 2 | 3261048 | Screw |
|
- | |||||
| 3 | 131007600 | Thermostat-control |
|
- | |||||
| 4 | 5303269972 | Bracket, Grounding |
|
- | |||||
| 8 | 5303015671 | Screw |
|
- | |||||
| 9 | 5303269973 | Duct, Exhaust |
|
- | |||||
| 10 | 5303281079 | Wheel, Blower |
|
$ 219.03 | |||||
| 11 | 5303281080 | Cover, Fan |
|
- | |||||
| 12 | 5303212834 | Clamp, Motor |
|
$ 3.78 | |||||
| 13 | 5303283470 | Motor & Pulley |
|
$ 414.17 | |||||
| 16 | 3281120 | Screw-ground |
|
- | |||||
| 17 | 134503600 | Belt (Replaces: 5303283471) |
|
Immediately | $ 18.79 | ||||
| 18 | 5303212849 | Idler Assembly |
|
$ 20.69 | |||||
| 19 | 3261230 | Screw-stop |
|
- | |||||
| 20 | 131017900 | Screw |
|
$ 14.46 | |||||
| 21 | 5303281076 | Spacer |
|
- | |||||
| 22 | 5303281085 | Spring, Idler |
|
$ 13.01 | |||||
| 23 | 131210401 | Cradle-motor |
|
- | |||||
| 24 | 5303281083 | Spring |
|
- | |||||
| 25 | 3281036 | Screw (4) |
|
- | |||||
| 26 | 3281077 | Screw |
|
- |
