SELECT A DIAGRAM

01 - Cover


02 - Control Panel


03 - Body

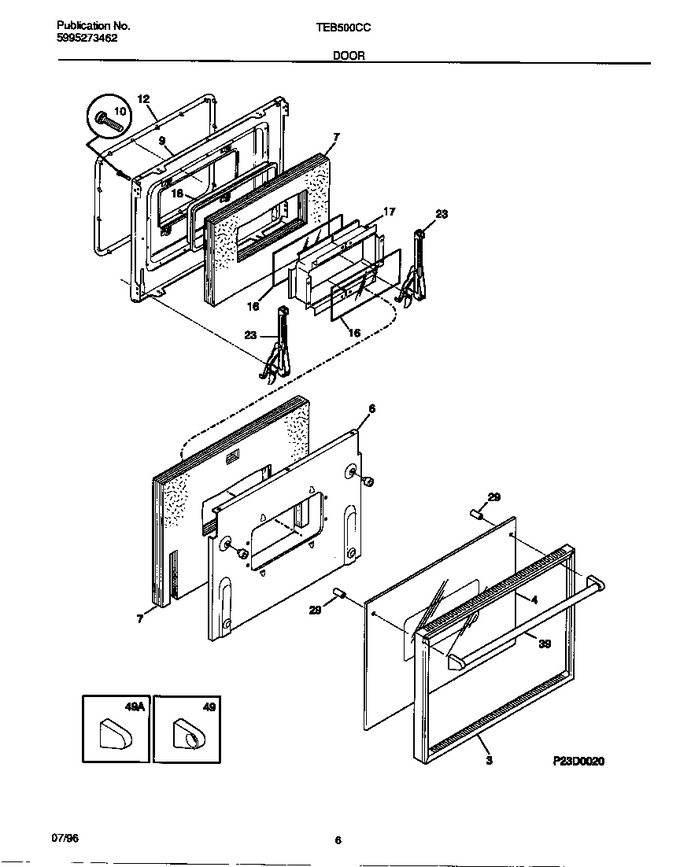

04 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
3	5303212560		Trim-oven Door, Black		Appelez-nous	-
4	5303299478		Glass-oven Door, Black, Outer		Appelez-nous	-
6	5303210005		Shield - Air Wash		Appelez-nous	-
7	5303308470		Insulation, Oven Door		Appelez-nous	-
9	5303296860		Liner-oven Door		Appelez-nous	-
10	5303316748		Screw-handle, (2)		Appelez-nous	-
12	5303316768		Seal-oven Door, Lower		Appelez-nous	-
16	5303016336		Glass-oven Door, Heat Barrier, Lower Oven		Appelez-nous	-
17	5303212864		Spacer-glass, Lower Oven		Appelez-nous	-
18	3016338		Seal-rope, Lower Oven				$ 43.20
23	3202464		Hinge-oven Door, Lower		Appelez-nous	-
29	5303210003		Spacer-handle Mtg, (2)		Appelez-nous	-
39	318040201		Handle-door, Black, Oven		Appelez-nous	-
49	5303307193		End Cap-handle, Black, Lh		Appelez-nous	-
49	5303307192		End Cap-handle, Black, Rh		Appelez-nous	-
*35728	5303300414		Spacer, Cork & Rubber				$ 13.18
*35729	3202113		Button, Plug		Appelez-nous	-
*35730	5303307980		Screw, 8-32 X 7/16			Immediately	$ 14.18
*35731	5303308456		Screw, 8-18 X 0.531, Door Frame				$ 10.06
*35732	5303316982		Tape, Seal, (3)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
