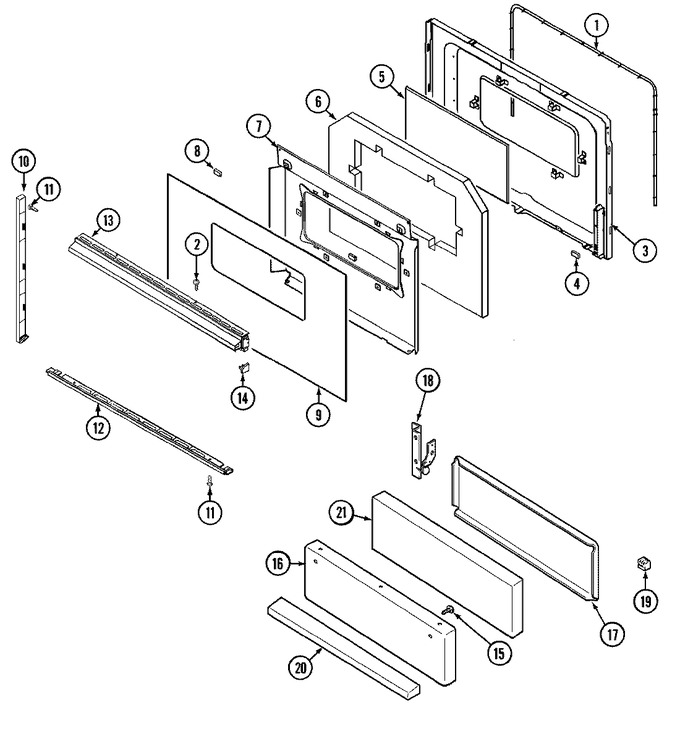

1	WP7212P043-60		Seal, Door   (Replaces: 7212P043-60)	10		Immediately	$ 56.83
2	WP98008545		Screw (1/2``)   (Replaces: 7101P040-60)	10			$ 15.94
3	2402W213-19		Lining, Door	10	Appelez-nous	-
4	8010P085-60		Spacer, Rubber	10	Appelez-nous	-
5	7902P319-60		Glass, Door (inner)----na	10	Appelez-nous	-
6	7002P158-60		Insulation, Door	10	Appelez-nous	-
7	7101P209-60		Screw	10	Appelez-nous	-
7	3601F240-80		Baffle, Door	10	Appelez-nous	-
8	8270P095-60		Tape, Double Sided	10	Appelez-nous	-
9	7902P321-60		Glass, Door (blk)	10	Appelez-nous	-
10	7744P055-60		End Cap, Oven Door (blk)	10	Appelez-nous	-
11	W11233072		Screw (8ab1/2-ni)   (Replaces: 74001530)	10		Immediately	$ 12.62
12	7744P105-60		Trim, Bottom (blk)----na	10	Appelez-nous	-
13	7701P103-60		Handle, Door (blk)	10	Appelez-nous	-
14	7744P076-60		End Cap (lt)	10	Appelez-nous	-
14	7744P075-60		End Cap (rt)	10	Appelez-nous	-
15	74002481		Screw	10			$ 5.82
16	74002551		Panel, Drawer (blk)	10	Appelez-nous	-
16	W11233072		Screw (8ab1/2-ni)   (Replaces: 74001530)	10		Immediately	$ 12.62
17	74002397		Lining, Drawer	10	Appelez-nous	-
18	W11233072		Screw (8ab1/2-ni)   (Replaces: 74001530)	10		Immediately	$ 12.62
18	74002398		Hinge, Drawer	10	Appelez-nous	-
19	8016P015-60		Glide	10			$ 5.65
20	WP2411F013-70		Handle, Drawer (blk)   (Replaces: 2411F003-70)	10			$ 186.01
21	74001814		Insulation, Broiler Drawer	10	Appelez-nous	-
