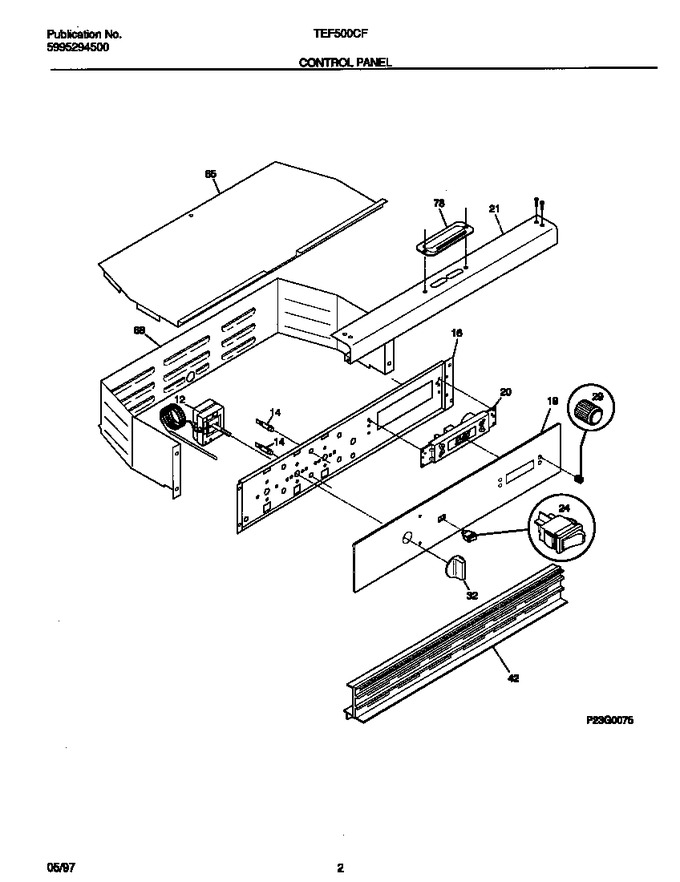

02 - Control Panel


03 - Body


04 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
12	5303323709		Thermostat		Appelez-nous	-
14	5303320424		Light/lamp, Indicator, (3)		Appelez-nous	-
16	318117701		Plate, Instrument Mtg		Appelez-nous	-
19	318000512		Panel-control, Glass		Appelez-nous	-
20	316065400		Clock/timer		Appelez-nous	-
21	318028321		Trim-canopy/shield, Black		Appelez-nous	-
21	5303307406		Screw, Top Trim, 6-32 X 3/8, Black, (2) (not Illustrated				$ 11.29
24	318110700		Bracket-light Switch (not Illustrated)		Appelez-nous	-
24	316090900		Switch-light/lamp				$ 95.18
29	5303311122		Button-clock		Appelez-nous	-
32	318016818		Knob-thermostat		Appelez-nous	-
42	318027301		Trim-vent, Black		Appelez-nous	-
65	5303316766		Cover-control Housing		Appelez-nous	-
68	5303302397		Housing,control		Appelez-nous	-
78	316037700		Seal, Vent Cover (not Illustrated)		Appelez-nous	-
78	316037800		Tape, Vent Cover (not Illustrated)		Appelez-nous	-
78	316037604		Cover, Oven Vent, Black		Appelez-nous	-
*80920	5303320666		Spacer-bracket Relay		Appelez-nous	-
*80921	134178901		Screw, 8 X 1/2   (Replaces: 5303211311)				$ 14.89
*80922	5303300414		Spacer, Cork & Rubber				$ 13.18
