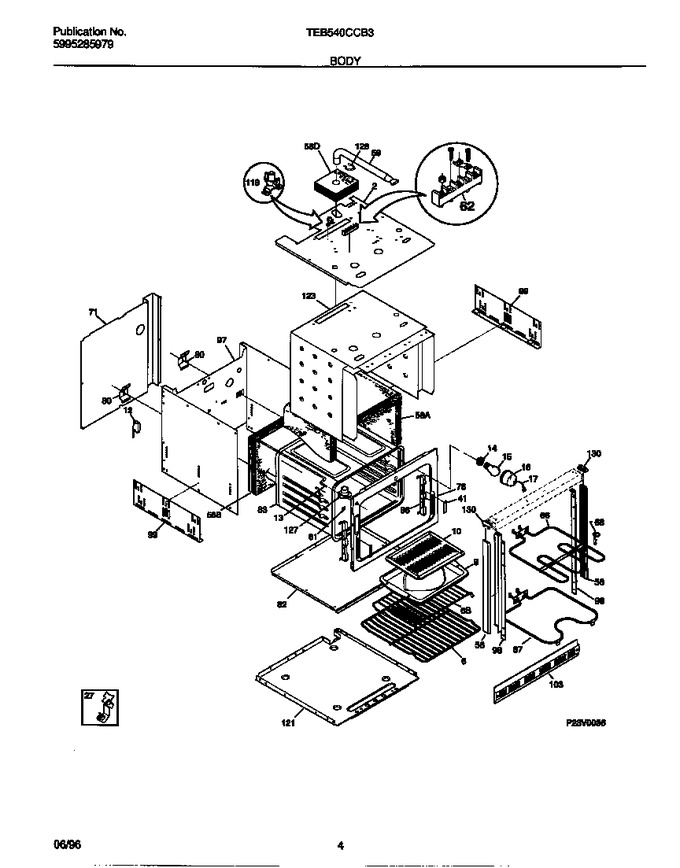

03 - Body


04 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	5303298946		Shield-oven Top		Appelez-nous	-
6	318345216		Rack-oven   (Replaces: 5303296873)				$ 103.90
9	5303317977		Pan,broiler		Appelez-nous	-
10	5303317976		Insert,broiler Pan		Appelez-nous	-
12	08015948		Switch-door		Appelez-nous	-
14	08011171		Socket-light/lamp, Oven		Appelez-nous	-
15	3201908		Lamp-oven Light		Appelez-nous	-
16	5304524341		Glass-oven Light Lens   (Replaces: 3201911)			Immediately	$ 15.61
17	3204483		Retainer-lens		Appelez-nous	-
27	3201910		Clip-thermo Bulb		Appelez-nous	-
41	3019063		Retainer-door		Appelez-nous	-
56	5303320422		Screw, 6-20 X 5/16, Side Trim, (4) (not Illustrated)				$ 12.71
56	5303271105		Trim-bodyside, Black, (2)		Appelez-nous	-
58	5303304703		Insulation, Oven Back		Appelez-nous	-
58	5303304702		Insulation, Oven Wrapper		Appelez-nous	-
59	318072509		Tube-oven Vent		Appelez-nous	-
62	5304409888		Terminal Block   (Replaces: 5303310518)			Immediately	$ 26.69
62	08002848		Screw, 10-24 X 29/32, Terminal Block (not Illustrated)		Appelez-nous	-
66	5303016247		Element, Broil				$ 223.97
67	318255101		Element, Bake   (Replaces: 3202440)				$ 185.70
67	5303320681		Screw, 8-32 X 3/8 (not Illustrated)		Appelez-nous	-
68	5303307563		Support-element		Appelez-nous	-
71	5303305037		Shield-wire		Appelez-nous	-
76	318056120		Front-oven		Appelez-nous	-
80	5303301261		Spring,oven		Appelez-nous	-
81	3201632		Spacer-oven		Appelez-nous	-
82	5303305035		Shield, Oven Bottom		Appelez-nous	-
83	318089513		Liner-oven Assy		Appelez-nous	-
86	3201631		Channel, Hinge				$ 58.22
97	318066603		Wrapper		Appelez-nous	-
98	318029301		Trim-side, Inner, Lh		Appelez-nous	-
98	318029300		Trim-side, Inner, Rh		Appelez-nous	-
99	5303299686		Support,adjustable		Appelez-nous	-
103	5303316735		Trim-base		Appelez-nous	-
119	318003605		Switch-thermal   (Replaces: 3202388)				$ 178.61
121	5303305036		Wrapper-base		Appelez-nous	-
127	5303310525		Adaptor Assy		Appelez-nous	-
130	5303271106		End Cap-trim, Black, Rh		Appelez-nous	-
130	5303271107		End Cap-trim, Black, Lh		Appelez-nous	-
*45763	08002868		Screw 10 X 24 X 1/2				$ 14.18
*45764	134178901		Screw, 8 X 1/2   (Replaces: 5303211311)				$ 14.89
*45765	5303316993		Harness-wiring		Appelez-nous	-
*45766	5303319292		Box & Wires Assy		Appelez-nous	-
