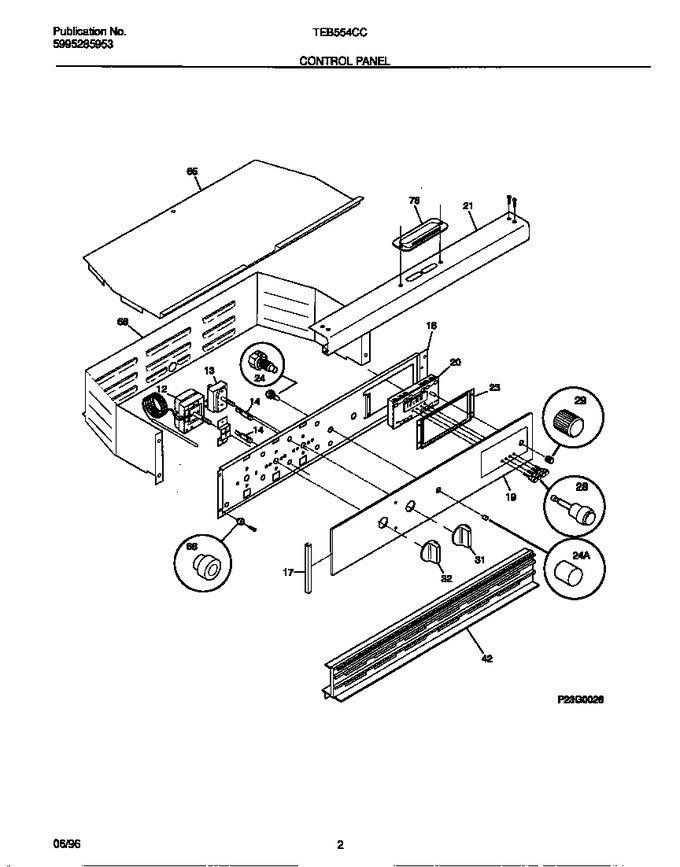

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
12	318058700		Thermostat-oven		Appelez-nous	-
13	318057700		Switch-selector, 5 Position		Appelez-nous	-
14	318044601		Light/lamp, Indicator, Red, 250 V, (2), Lock/clean		Appelez-nous	-
14	5303316772		Light/lamp, Indicator, Red, 120 V		Appelez-nous	-
16	318023402		Plate, Instrument Mtg		Appelez-nous	-
17	5303316765		Trim-glass Retainer, Black, (2)		Appelez-nous	-
19	318000506		Panel-control, Glass		Appelez-nous	-
20	5303302289		Clock/timer, Electronic		Appelez-nous	-
21	5303307406		Screw, Top Trim, 6-32 X 3/8, Black, (2) (not Illustrated				$ 11.29
21	318028321		Trim-canopy/shield, Black		Appelez-nous	-
23	3202088		Bracket-clock Mtg		Appelez-nous	-
24	318090000		Switch-oven Light		Appelez-nous	-
24	5303299474		Knob-light Switch, Black		Appelez-nous	-
24	5303316767		Nut-decorative, Black (not Illustrated)		Appelez-nous	-
24	5303302303		Nut, Hex, Light Switch (not Illustrated)		Appelez-nous	-
28	5303302295		Knob-clock, Black, (4)		Appelez-nous	-
29	08017238		Knob-clock/timer, Black		Appelez-nous	-
31	318016709		Knob-selector, 5 Pos, Black		Appelez-nous	-
32	318016810		Knob-thermostat, Lower		Appelez-nous	-
42	318027301		Trim-vent, Black		Appelez-nous	-
65	5303316766		Cover-control Housing		Appelez-nous	-
66	3202093		Bumper, Rubber, (4)		Appelez-nous	-
68	5303302397		Housing,control		Appelez-nous	-
69	5303292005		Screw-switch Mtg, 8-32 X 5/32, (2)		Appelez-nous	-
78	316037800		Tape, Vent Cover (not Illustrated)		Appelez-nous	-
78	316037604		Cover, Oven Vent, Black		Appelez-nous	-
78	316037700		Seal, Vent Cover (not Illustrated)		Appelez-nous	-
*41560	134178901		Screw, 8 X 1/2   (Replaces: 5303211311)				$ 14.89
*41561	5303300414		Spacer, Cork & Rubber				$ 13.18
*41562	5303311318		End Connector		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
