04 - Upper Body

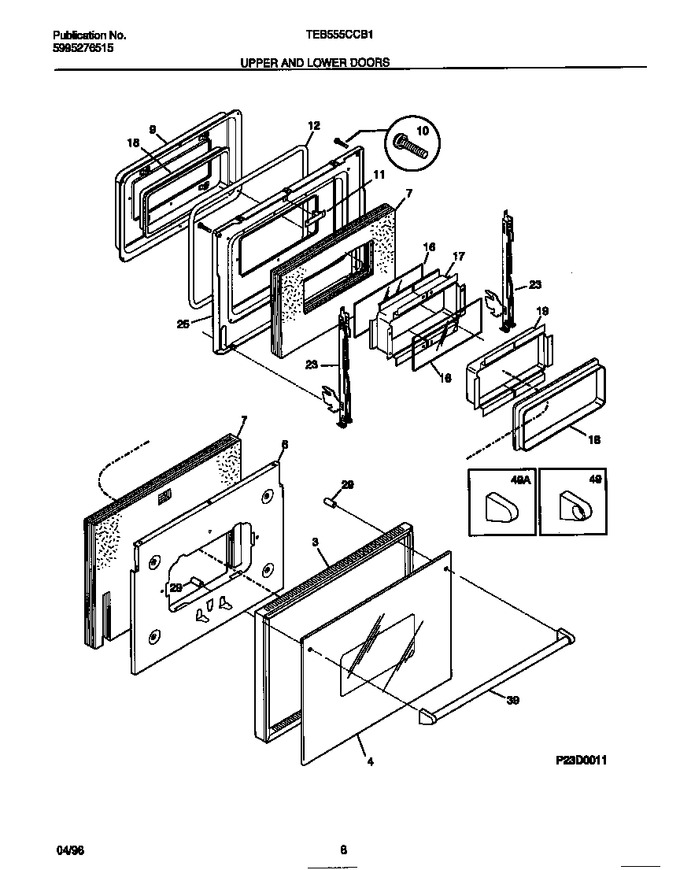

05 - Upper And Lower Doors


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
3	5303212560		Trim-oven Door		Appelez-nous	-
4	5303299478		Glass-oven Door, Lower Oven		Appelez-nous	-
4	3202420		Glass-oven Door, Upper Oven		Appelez-nous	-
6	5303210005		Shield - Air Wash		Appelez-nous	-
7	5303308470		Insulation, Oven Door		Appelez-nous	-
9	5303301256		Liner-oven Door, Upper Oven		Appelez-nous	-
9	5303299311		Liner-oven Door, Lower Oven		Appelez-nous	-
10	5303316748		Screw-handle, (2)		Appelez-nous	-
11	DK1323556		Strike Plate, Upper Oven		Appelez-nous	-
12	3205189		Seal-oven Door, Upper Oven		Appelez-nous	-
12	5303317713		Seal-oven Door, Lower Oven		Appelez-nous	-
16	5303016336		Glass-oven Door, Heat Barrier, Lower Oven		Appelez-nous	-
16	5303210001		Glass-oven Door, Heat Barrier, Upper Oven		Appelez-nous	-
17	5303210006		Spacer-glass, Upper Oven		Appelez-nous	-
17	5303212864		Spacer-glass, Lower Oven		Appelez-nous	-
18	3016263		Seal-rope, Upper Oven				$ 66.15
18	3016338		Seal-rope, Lower Oven				$ 43.20
19	5303210008		Collar-glass Mtg, Upper Oven		Appelez-nous	-
23	3201899		Washer, Hinge Assy, (4) (not Illustrated)		Appelez-nous	-
23	316009400		Hinge-oven Door, Upper Oven		Appelez-nous	-
23	3202464		Hinge-oven Door, Lower Oven		Appelez-nous	-
25	5303301253		Liner-door Baffle, Upper Oven		Appelez-nous	-
29	5303210003		Spacer-handle Mtg, (2)		Appelez-nous	-
39	318040201		Handle-door, Oven		Appelez-nous	-
49	5303307193		End Cap-handle, Black, Lh		Appelez-nous	-
49	5303307192		End Cap-handle, Black, Rh		Appelez-nous	-
*13609	3202113		Button, Plug		Appelez-nous	-
*13610	5303300414		Spacer, Cork & Rubber				$ 13.18
*13611	5303307980		Screw, 8-32 X 7/16			Immediately	$ 14.18
*13612	5303308456		Screw, 8-18 X 17/32, Door Frame				$ 10.06
*13613	5303316982		Tape, Seal, (2)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
