SELECT A DIAGRAM

01 - Cover


02 - Control Panel

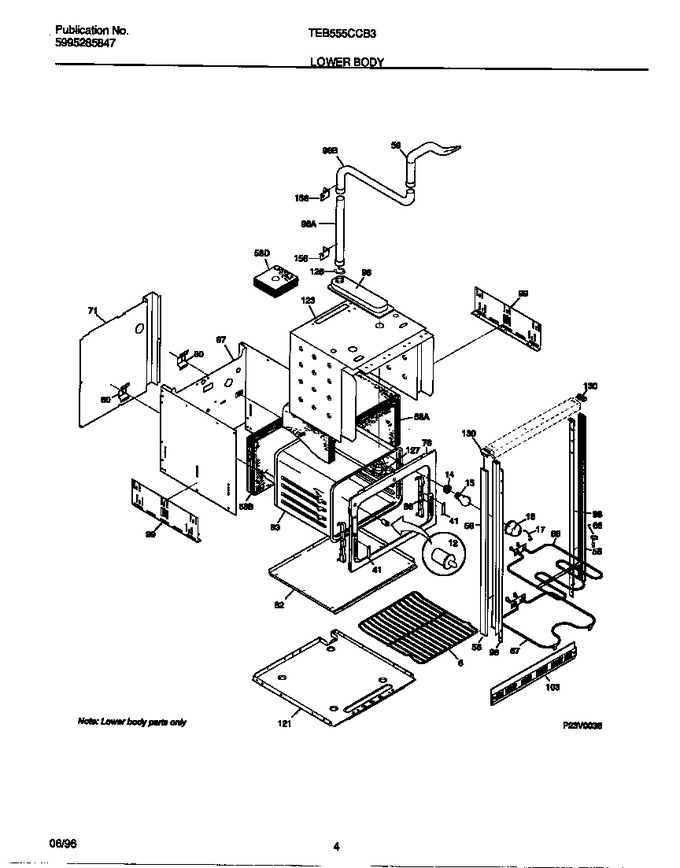

03 - Lower Body


04 - Upper Body


05 - Doors


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
6	5303299366		Rack-oven		Appelez-nous	-
12	5301314211		Switch-light				$ 95.29
12	5303308447		Screw, Switch-ovn Lght (not Illustrated)		Appelez-nous	-
12	3131095		Fastener, Switch (not Illustrated)		Appelez-nous	-
14	08011171		Socket-light/lamp, Oven		Appelez-nous	-
15	3201908		Lamp-oven Light		Appelez-nous	-
16	5304524341		Glass-oven Light Lens   (Replaces: 3201911)			Immediately	$ 15.61
17	3204483		Retainer-lens		Appelez-nous	-
27	5303284616		Clip-thermo Bulb				$ 9.86
28	3015722		Clip-wire		Appelez-nous	-
41	3019063		Retainer-door		Appelez-nous	-
56	5303283302		Trim-bodyside, (2)		Appelez-nous	-
56	5303320422		Screw, 6-20 X 5/16, Side Trim, (4) (not Illustrated)				$ 12.71
58	3019048		Insulation,oven Back ,wrapper		Appelez-nous	-
58	5303304702		Insulation, Oven Wrapper		Appelez-nous	-
58	5303317714		Insulation, Oven Vent		Appelez-nous	-
59	318072509		Tube-oven Vent		Appelez-nous	-
66	5303016247		Element, Broil				$ 223.97
67	5303320681		Screw, 8-32 X 3/8 (not Illustrated)		Appelez-nous	-
67	318255101		Element, Bake   (Replaces: 3202440)				$ 185.70
68	5303307563		Support-element		Appelez-nous	-
71	5303317719		Shield-rear Wall		Appelez-nous	-
76	318056130		Front-oven		Appelez-nous	-
80	5303301261		Spring,oven		Appelez-nous	-
82	5303305035		Shield, Oven Bottom		Appelez-nous	-
83	318089515		Liner-oven Assy		Appelez-nous	-
86	3201631		Channel, Hinge				$ 58.22
96	3016327		Duct-vent Pipe		Appelez-nous	-
96	5303317197		Duct,oven Vent ,assy		Appelez-nous	-
96	3016325		Duct,oven Vent ,center		Appelez-nous	-
97	318066603		Wrapper		Appelez-nous	-
98	318029310		Trim-side,inner,rh		Appelez-nous	-
98	318029311		Trim-side,inner,lh		Appelez-nous	-
99	5303299686		Support,adjustable		Appelez-nous	-
103	5303316735		Trim-base		Appelez-nous	-
119	318003605		Switch-thermal   (Replaces: 3202388)				$ 178.61
121	5303305036		Wrapper-base		Appelez-nous	-
123	3202445		Shield-insulation, Top & Sides		Appelez-nous	-
126	3016303		Clip-insulator Retainer		Appelez-nous	-
127	318317100		Adapter Assy   (Replaces: 5303310542)				$ 75.13
130	5303316992		End Cap-trim, Black, Rh & Lh		Appelez-nous	-
130	5303271106		End Cap-trim, Black, Rh		Appelez-nous	-
130	5303271107		End Cap-trim, Black, Lh		Appelez-nous	-
156	5303317198		Bracket-oven Vent		Appelez-nous	-
*10603	3018802		Clip-cable		Appelez-nous	-
*10604	3201881		Lockwasher		Appelez-nous	-
*10605	5303300421		Cover-capillary		Appelez-nous	-
*10606	3051070		Screw, Hex Washer Head, 10-24 X 7/16, Special		Appelez-nous	-
*10607	08002868		Screw 10 X 24 X 1/2				$ 14.18
*10608	134178901		Screw, 8 X 1/2   (Replaces: 5303211311)				$ 14.89

    View Diagram in Separate Window       Print Part List
