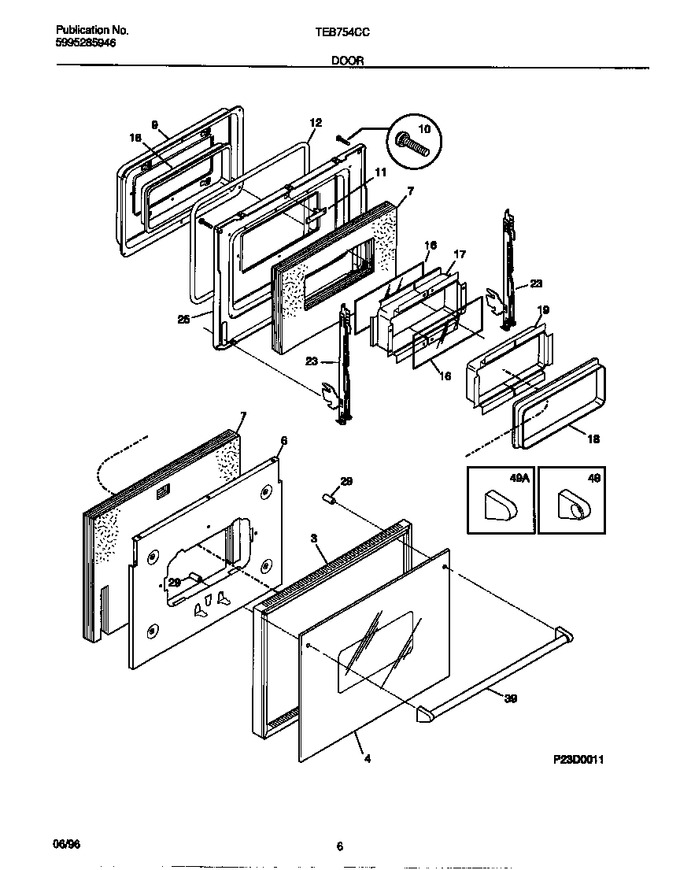

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
3	318026600		Trim,oven Door ,black		Appelez-nous	-
4	5303302279		Glass-oven Door,white ,outer		Appelez-nous	-
6	5303210005		Shield - Air Wash		Appelez-nous	-
7	5303308470		Insulation, Oven Door		Appelez-nous	-
9	318048301		Liner-oven Door		Appelez-nous	-
10	5303316748		Screw-handle, (2)		Appelez-nous	-
11	5301167830		Strike Plate		Appelez-nous	-
12	5303299275		Seal-oven Door		Appelez-nous	-
16	5303210001		Glass-oven Door, Heat Barrier, Upper Oven		Appelez-nous	-
17	5303210008		Spacer-glass, Upper Oven		Appelez-nous	-
18	3016263		Seal-rope, Upper Oven				$ 66.15
19	5303210006		Collar-glass Mtg, Upper Oven		Appelez-nous	-
23	5303018381		Hinge-oven Door				$ 145.85
25	318038601		Liner-door Baffle		Appelez-nous	-
29	5303210003		Spacer-handle Mtg, (2)		Appelez-nous	-
39	318040204		Handle-door, White, Oven		Appelez-nous	-
49	5303307194		End Cap-handle, White, Rh		Appelez-nous	-
49	5303307195		End Cap-handle, White, Lh		Appelez-nous	-
*41011	3202113		Button, Plug		Appelez-nous	-
*41012	5303316982		Tape, Seal, (3)		Appelez-nous	-
*41013	5303300265		Screw, 8-18 X 1/2				$ 15.17
*41014	5303300414		Spacer, Cork & Rubber				$ 13.18
*41015	5303308456		Screw, 8-18 X 0.531, Door Frame				$ 10.06
