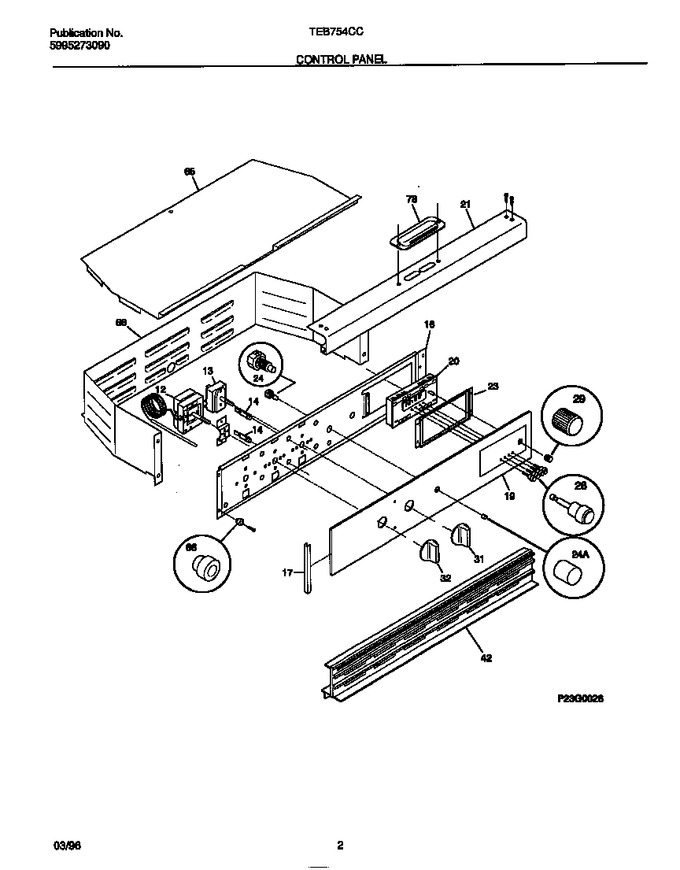

01 - Cover


02 - Control Panel


03 - Body


04 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
12	318058700		Thermostat-oven, Upper		Appelez-nous	-
13	318057700		Switch-selector, 5 Position		Appelez-nous	-
16	318023403		Plate, Instrument Mtg		Appelez-nous	-
17	5303316901		Trim-glass Retainer, White, (2)		Appelez-nous	-
19	318000404		Panel-control, Glass, White		Appelez-nous	-
20	5303302289		Clock/timer, Electronic		Appelez-nous	-
21	318028304		Trim-canopy/shield, White		Appelez-nous	-
23	3202088		Bracket-clock Mtg		Appelez-nous	-
24	5303299474		Knob-light Switch, Black		Appelez-nous	-
24	5303316744		Nut-decorative, White (not Illustrated)		Appelez-nous	-
28	5303302294		Knob-clock, White, (3)		Appelez-nous	-
29	5303302290		Knob-clock/timer, White		Appelez-nous	-
31	318016710		Knob-selector, 5 Pos, White		Appelez-nous	-
32	318016811		Knob-thermostat, White		Appelez-nous	-
42	5303286414		Trim-vent, White		Appelez-nous	-
65	3016309		Cover-control Housing		Appelez-nous	-
66	3202093		Bumper, Rubber, (4)		Appelez-nous	-
68	5303302285		Housing-control		Appelez-nous	-
78	316037603		Cover, Oven Vent, White		Appelez-nous	-
*35160	5303131766		Screw, 6-32 X 3/8``, White				$ 10.87
*35161	5303300265		Screw, 8-18 X 1/2				$ 15.17
*35162	5303292005		Screw-switch Mtg, 8-32 X 5/32, (2)		Appelez-nous	-
*35163	5303300414		Spacer, Cork & Rubber				$ 13.18
*35164	5303311318		End Connector		Appelez-nous	-
14A	318044601		Light/lamp, Indicator, Red, 250 V, (2), Lock/clean		Appelez-nous	-
14B	5303316772		Light/lamp, Indicator, Red, 120 V		Appelez-nous	-
24A	318090000		Switch-oven Light		Appelez-nous	-
24B	5303302303		Nut, Hex, Light Switch (not Illustrated)		Appelez-nous	-
78A	316037700		Seal, Vent Cover (not Illustrated)		Appelez-nous	-
78B	316037800		Tape, Vent Cover (not Illustrated)		Appelez-nous	-
