Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 423T016P02 Magnetron Appelez-nous -
2 115T695P08 Switch Thermo Cutout Mag. Appelez-nous -
3 262T010P01 Fuse (20 Amp) Appelez-nous -
4 664T003P01 Socket, Fuse Appelez-nous -
5 115T239P01 Fan Blade Transformer Appelez-nous -
6 115T463P03 Motor Fan Appelez-nous -
7 618T048P01 Rod Fan Mtr Supt Appelez-nous -
8 136T309F01 Channl Mtg Guide Appelez-nous -
9 115T198P02 Diode Hi Voltage Appelez-nous -
10 709T031P01 Terminal Block Appelez-nous -
11 737T061P01 Transformer High Voltage Appelez-nous -
12 636T101P14 Screw-transformer Mtg (4) Appelez-nous -
12 636T101P10 Screw Transformer Mtg (4) Appelez-nous -
13 612T104F01 Retainer, Capacitor Appelez-nous -
14 655T378P01 Shield Capac Term Appelez-nous -
15 115T157P02 Capac Hi Voltage Non-pcb Appelez-nous -
16 737T055P02 Transformer Lo Volt Appelez-nous -
17 355T448S01 Kit Interlock Sw Appelez-nous -
18 355T515S04 Triac Heat Sink Assy Appelez-nous -
19 636T095P47 Screw Appelez-nous -
19 636T095P11 Screw (2) Appelez-nous -
20 554T338F02 Plate, Heat Sink Appelez-nous -
21 479T069P30 Nut Hex 6-32 Special (2) Appelez-nous -
22 742T005P01 Triac Appelez-nous -
23 636T090P54 Screw Triac Heat Sink To Air Baffle Angle 8a X 1/2`` (2) Appelez-nous -
10A 479T069P34 Nut Hex Brass 10-32 (4) (non-illustrated) Appelez-nous -
17A 636T095P16 Screw Interlk Sw (6) (non-illustrated) Appelez-nous -
1A 479T069P31 Nut Hex 5 Millim (non-illustrated) Appelez-nous -
23A 3091205 Harness Main (non-illustrated) Appelez-nous -
23B 299T405S203 Harness Diode Assy (non-illustrated) Appelez-nous -
23C 636T069P02 Screw Term Blk Mt (2) (non-illustrated) Appelez-nous -
23D 3091206 Harness Control Appelez-nous -
2A 636T074P10 Screw Thermo Cutout Sw (non-illustrated) Appelez-nous -
6A 636T090P54 Screw Mtr Mtg (non-illustrated) Appelez-nous -

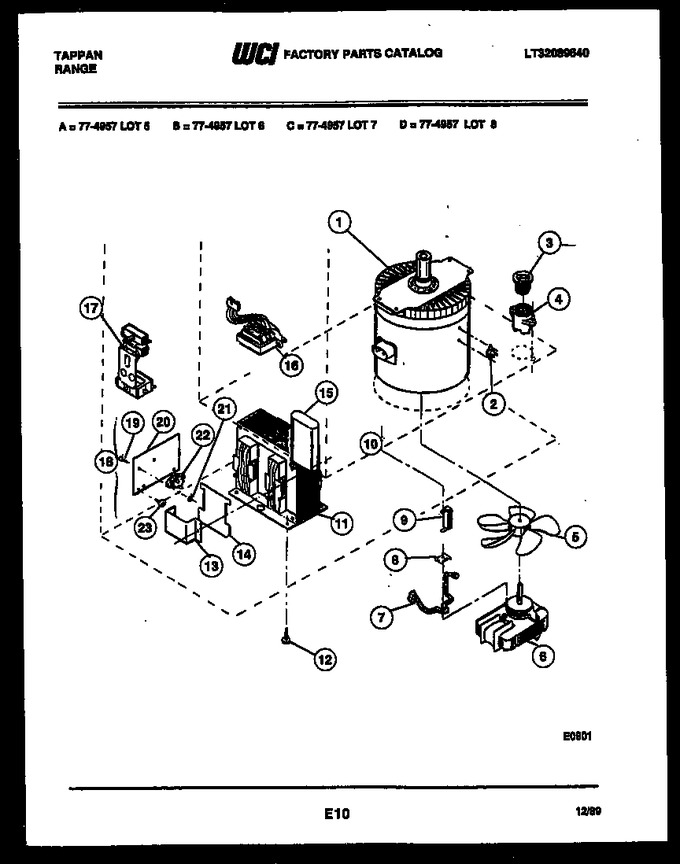

    View Diagram in Separate Window     Print Icon   Print Part List
