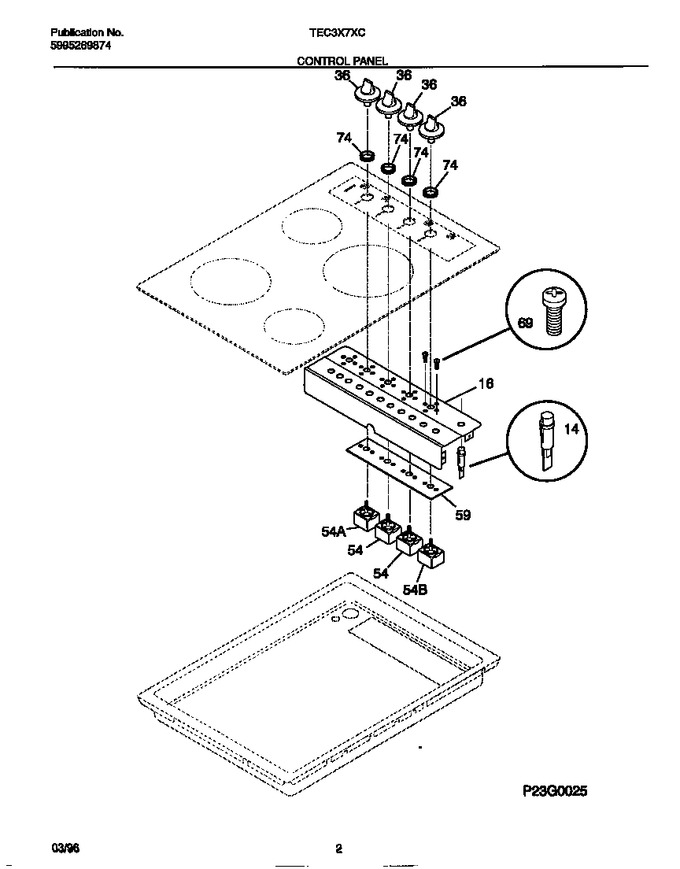

02 - Control Panel
03 - Main Top Parts
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 14 | 3015699 | Light-indicator |
|
- | |||||
| 16 | 3051602 | Plate, Instrument Mtg |
|
- | |||||
| 36 | 5303311104 | Knob-control, Black, (4) |
|
- | |||||
| 54 | 5308017080 | Switch-surface Unit, 2100w |
|
- | |||||
| 54 | 5303311101 | Switch-surface Unit, 1700w |
|
- | |||||
| 54 | 5303015702 | Switch-surface Unit, 1200w |
|
- | |||||
| 59 | 5303209917 | Seal-switch |
|
- | |||||
| 69 | 5303292005 | Screw-switch Mtg, 8-32 X 3/16, Sw To Cntl Pnl, (8) |
|
- | |||||
| 74 | 5301316432 | Bushing, Switch |
|
- |
