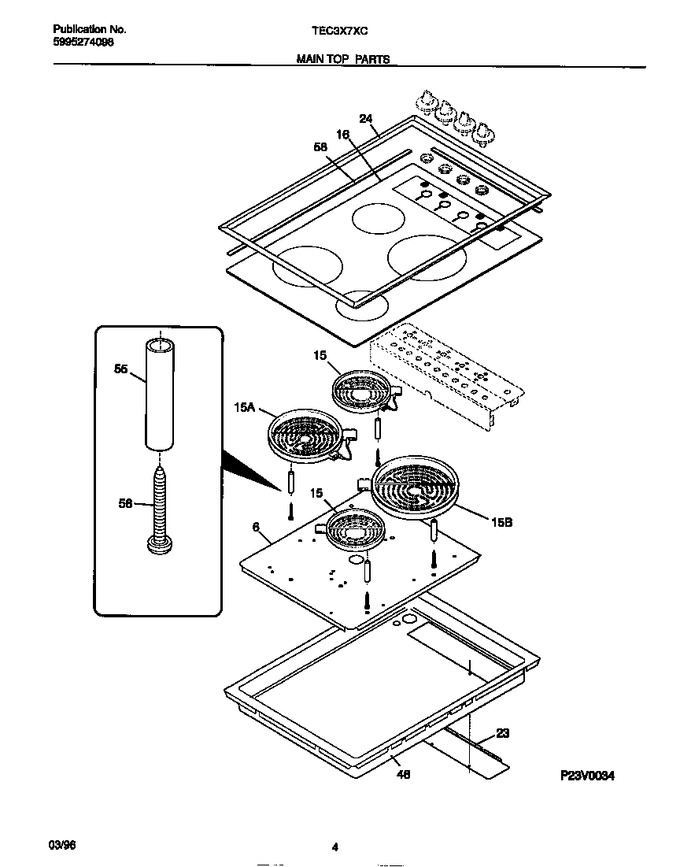

03 - Main Top Parts
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 6 | 3015705 | Support-element |
|
- | |||||
| 15 | 318198817 | Element-surface, 1200 W (Replaces: 318050100) |
|
Immediately | $ 192.78 | ||||
| 15 | 318050101 | Element-surface, 2100w |
|
- | |||||
| 15 | 318050102 | Element-surface, 1700 W |
|
- | |||||
| 15 | 5303297478 | Spring-element Mtg (not Illustrated) |
|
- | |||||
| 16 | 3201600 | Screw, Main Top (not Illustrated) |
|
- | |||||
| 16 | 318019100 | Main Top, Glass, White |
|
- | |||||
| 23 | 3051887 | Cover, Access |
|
- | |||||
| 24 | 5303311102 | Trim-main Top, White |
|
- | |||||
| 46 | 3015691 | Box-burner |
|
- | |||||
| 55 | 5303316771 | Spacer-element |
|
- | |||||
| 56 | 5303297477 | Screw-element |
|
$ 15.17 | |||||
| 58 | 5303311147 | Tape-foam |
|
- | |||||
| *90921 | 08013443 | Screw, Support Element |
|
- | |||||
| *90922 | 5303300195 | Screw, Terminal Block |
|
- |
