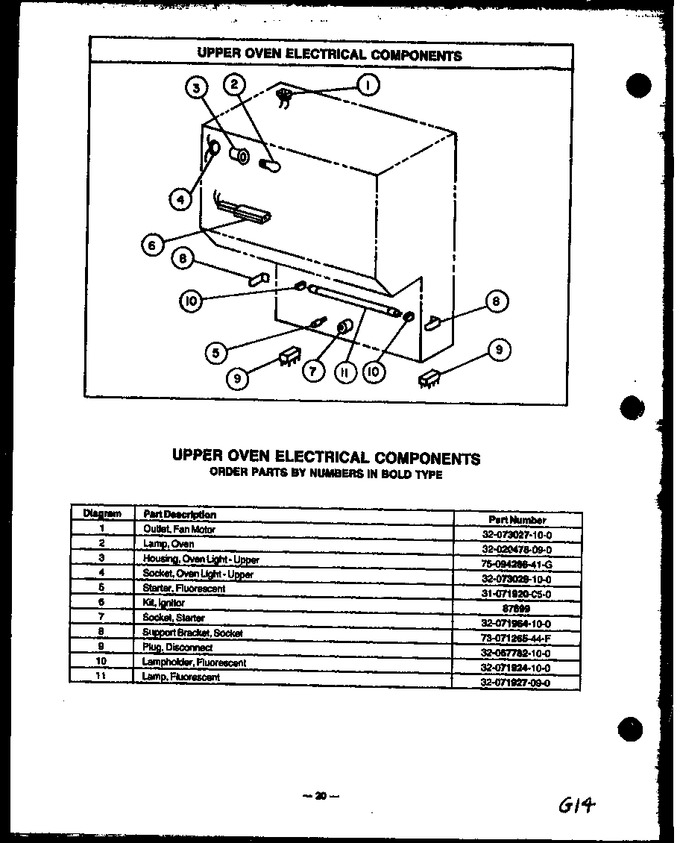

Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 0073027 Receptacle Appelez-nous -
2 8009 Sub A0282806   (Replaces: Y0020478) In-Stock Immediately $ 16.80

3 0094286 Housing, Oven Light Appelez-nous -
4 0073028 Sub 90264,kit Light Socket Appelez-nous -
5 0071920 Starter, Flourescent Appelez-nous -
6 786324 Kit, Ignitor-bake/broil   (Replaces: Y0087699) In-Stock Immediately $ 60.68

7 0071964 Socket, Starter Appelez-nous -
8 Y0071265 Bracket, Socket, Fl. Lite Appelez-nous -
9 0067782 Plug, 9 Pin, Male Appelez-nous -
10 Y0071924 Light Socket Appelez-nous -
11 WP95292 Lamp, Fluorescent   (Replaces: Y0071927) In-Stock Immediately $ 121.45

NOTE: Rss399 Upper Oven Parts - Note 1 - On Models Starting At Sn 6807760, Some Parts Are Not Used Or Have Changed. Verify Part Number Before Ordering Appelez-nous -
