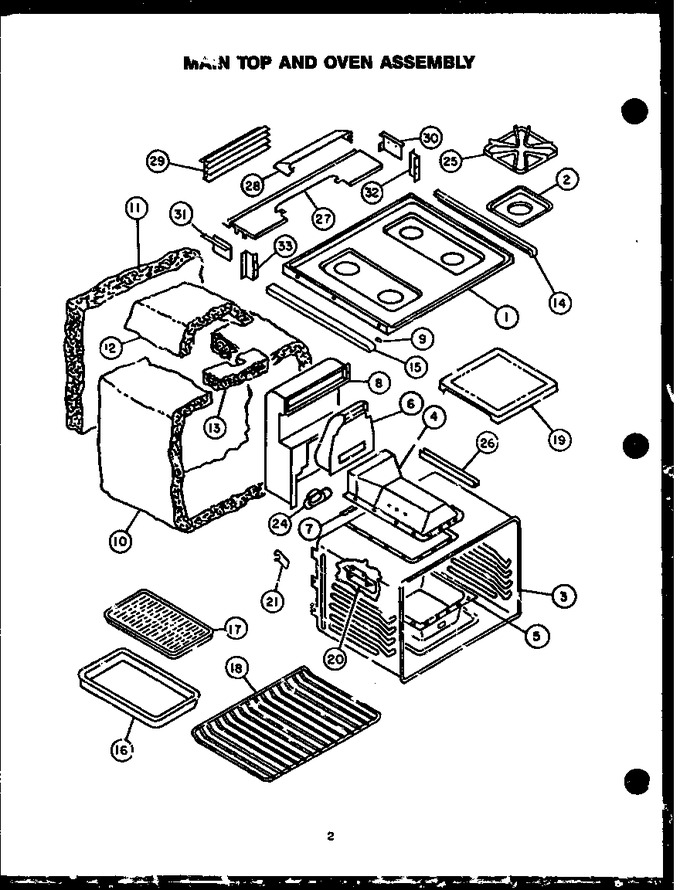

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10124579		Main Top - Almond		Appelez-nous	-
1	Y0060619		Main Top Chrome		Appelez-nous	-
1	W10124580		Main Top - White		Appelez-nous	-
2	WPY0060872		Burner Bowl   (Replaces: Y0060872)				$ 25.26
3	0058789		Oven Shell		Appelez-nous	-
4	Y0062892		Chamber, Broiler		Appelez-nous	-
5	Y0063802		Burner Box, Lower		Appelez-nous	-
6	0062770		Flue		Appelez-nous	-
7	0062754		Gasket, Oven Back		Appelez-nous	-
8	0063552		Flue, Dilution		Appelez-nous	-
9	Y0062445		Spacer, Nylon (.14``)		Appelez-nous	-
10	Y0062947		Sub 41966, Insulation		Appelez-nous	-
11	Y0062945		Sub 41966, Insulation		Appelez-nous	-
12	Y0062946		Sub 41966, Insulation		Appelez-nous	-
13	Y0062944		Sub 41966, Insulation		Appelez-nous	-
14	Y0061499		Top Trim R.h		Appelez-nous	-
15	Y7061498040		Trim, Main Top - L.h.		Appelez-nous	-
16	Y0011161		Sub 11161cg, Broiler Pan		Appelez-nous	-
17	4396923		Broiler Grid   (Replaces: Y0098682)			Immediately	$ 52.04
18	WP314763J		Rack,oven   (Replaces: Y0067810)				$ 70.11
19	Y0058625		Oven Bottom		Appelez-nous	-
20	0062792		Shield, Thermostat Bulb		Appelez-nous	-
21	Y0058852		Bracket, Oven Cavity		Appelez-nous	-
24	Y0301360		Sub 62799g, Cup, Duct		Appelez-nous	-
25	Y0060529		Grate		Appelez-nous	-
26	Y0063775		Channel, Br. Brnr.		Appelez-nous	-
27	Y0061530		Lo Backrail		Appelez-nous	-
28	W10125649		Cover, Dilution Flue		Appelez-nous	-
29	Y0059082		Trim Piece, Flue		Appelez-nous	-
30	0061529		End Cap, Rh		Appelez-nous	-
31	0061528		X End Cap, Lh		Appelez-nous	-
32	Y0058912		Support, Backguard Rt		Appelez-nous	-
33	Y0058913		Support, Backguard Lt		Appelez-nous	-
NI	0300278		Chip Cover		Appelez-nous	-
