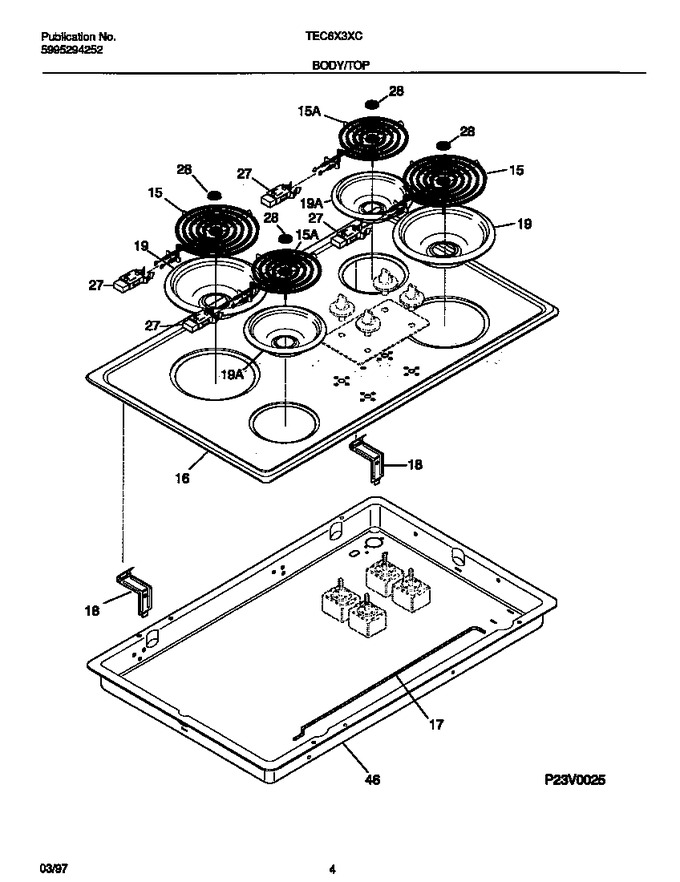

03 - Body/top


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
15	316439802		Element-surface, Small/6 Inch, (2)   (Replaces: 5303299749)			Immediately	$ 192.78
15	5308011964		Element-surface, Large/8 Inch, (2)				$ 209.08
16	318159032		Main Top, Almond		Appelez-nous	-
17	3016817		Rod,maintop Support		Appelez-nous	-
18	318074310		Hinge-main Top, (2)				$ 51.98
19	316048413		Pan-surface Element, Large/8 Inch, (2)   (Replaces: 5303013588)			Immediately	$ 9.85
19	316048414		Pan-surface Element, Small/6 Inch, (2)   (Replaces: 5303280336)			Immediately	$ 16.11
28	5303301461		Medallion, Surface Element		Appelez-nous	-
46	318077011		Burner Box		Appelez-nous	-
*66241	5303308449		Fastener		Appelez-nous	-
*66242	5303311322		Terminal		Appelez-nous	-
*66243	5303311366		Conduit-cable		Appelez-nous	-
*66244	5303311532		Screw, Back		Appelez-nous	-
27A	5303935058		Terminal Block Kit, Surface Element   (Replaces: 5301167733)			Immediately	$ 13.81
27B	318122500		Support, Terminal Block, (4) (not Illustrated)		Appelez-nous	-
27C	5303300195		Screw, 10-32 X 3/8, Terminal Block, (2) (not Illustrated		Appelez-nous	-
