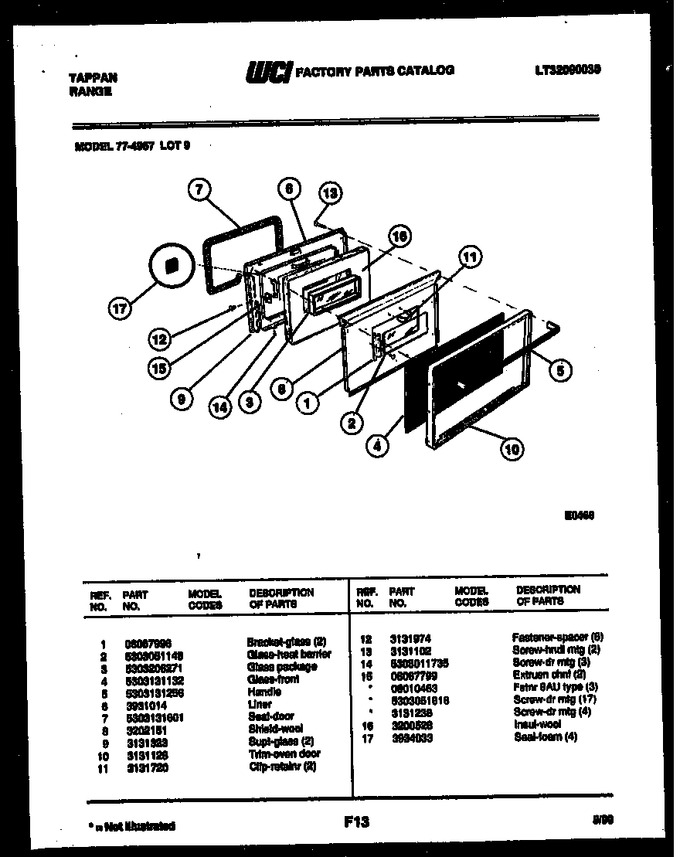

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 08067996 | Bracket-glass (2) |
|
- | |||||
| 2 | 5303051148 | Glass, Heat Barrier |
|
- | |||||
| 3 | 5303206271 | Glass Package |
|
- | |||||
| 4 | 5303131132 | Glass, Front |
|
- | |||||
| 5 | 5303131256 | Handle |
|
- | |||||
| 6 | 3931014 | Liner |
|
- | |||||
| 7 | 5303131601 | Seal, Door |
|
$ 374.63 | |||||
| 8 | 3202151 | Shield, Wool |
|
- | |||||
| 9 | 3131323 | Supt. Glass (2) |
|
- | |||||
| 10 | 3131128 | Trim, Oven Door |
|
- | |||||
| 11 | 3131720 | Clip-retainr (2) |
|
- | |||||
| 12 | 3131974 | Fastener, Spacer (6) |
|
- | |||||
| 13 | 3131102 | Screw-hndl Mtg (2) |
|
- | |||||
| 14 | 5308011735 | Screw-dr Mtg (3) |
|
- | |||||
| 15 | 08067799 | Extrusn Chnl (2) |
|
- | |||||
| 16 | 3200528 | Insul-wool |
|
- | |||||
| 17 | 3934033 | Seal, Foam (4) |
|
- | |||||
| 15A | 08010463 | Fastener-clip |
|
- | |||||
| 15B | 5303051818 | Screw-dr Mtg (17) (non-illustrated) |
|
- | |||||
| 15C | 3131236 | Screw-dr Mtg (4) (non-illustrated) |
|
- |
