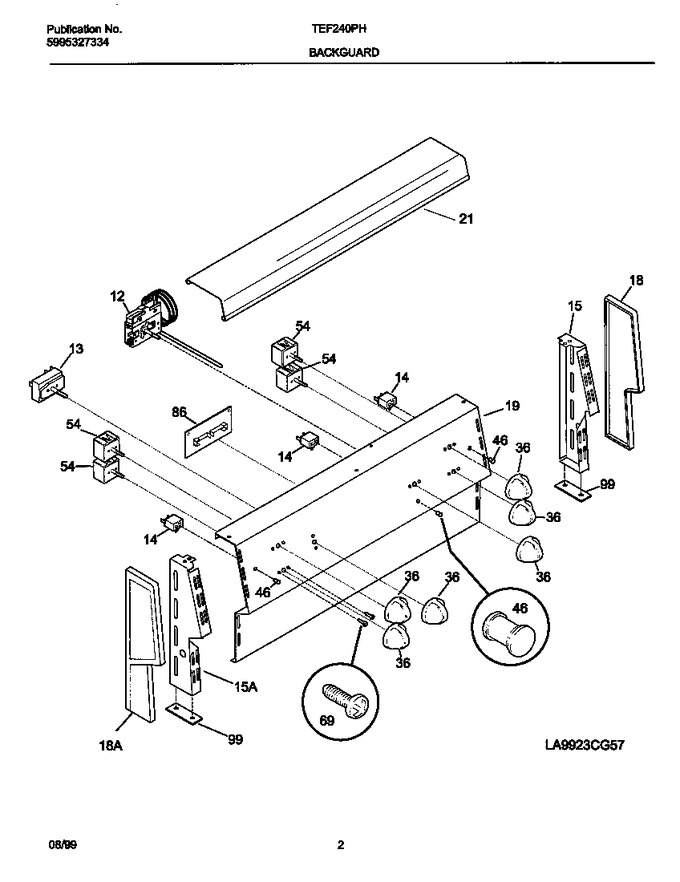

02 - Backguard
03 - Body
04 - Top/drawer
05 - Door
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 12 | 318059300 | Thermostat-oven |
|
$ 253.70 | |||||
| 13 | 318082300 | Switch-selector |
|
- | |||||
| 14 | 5303323991 | Light/lamp,indicator |
|
$ 26.25 | |||||
| 15 | 5303304001 | Bracket-endcap, Lh |
|
$ 5.62 | |||||
| 15 | 5303304000 | Bracket-endcap, Rh |
|
$ 7.14 | |||||
| 18 | 5303304540 | End Cap, Rh |
|
- | |||||
| 18 | 5303304541 | End Cap, Lh |
|
- | |||||
| 19 | 318005413 | Panel-control,metal |
|
- | |||||
| 21 | 318051203 | Trim-canopy/shield,almond |
|
- | |||||
| 36 | 318017106 | Knob-control,(6) |
|
$ 62.74 | |||||
| 46 | 5308006417 | Lens-light/lamp, Indicator, Red, (2) |
|
$ 19.06 | |||||
| 54 | 318120500 | Switch-surface Unit |
|
$ 186.80 | |||||
| 69 | 5303288565 | Screw, Switch Mtg., 8-32 X 3/16 (Replaces: 5303323134) |
|
$ 3.12 | |||||
| 86 | 318111200 | Plate-connecting |
|
- | |||||
| 99 | 5303304544 | Spacer |
|
- | |||||
| *30280 | 154079601 | Nut (Replaces: 3201885) |
|
$ 0.41 | |||||
| *30281 | 134178901 | Screw, 8 X 1/2 (Replaces: 5303211311) |
|
$ 14.89 | |||||
| *30282 | 5303310510 | Screw <10-24 X 5/8 > |
|
$ 14.18 |
