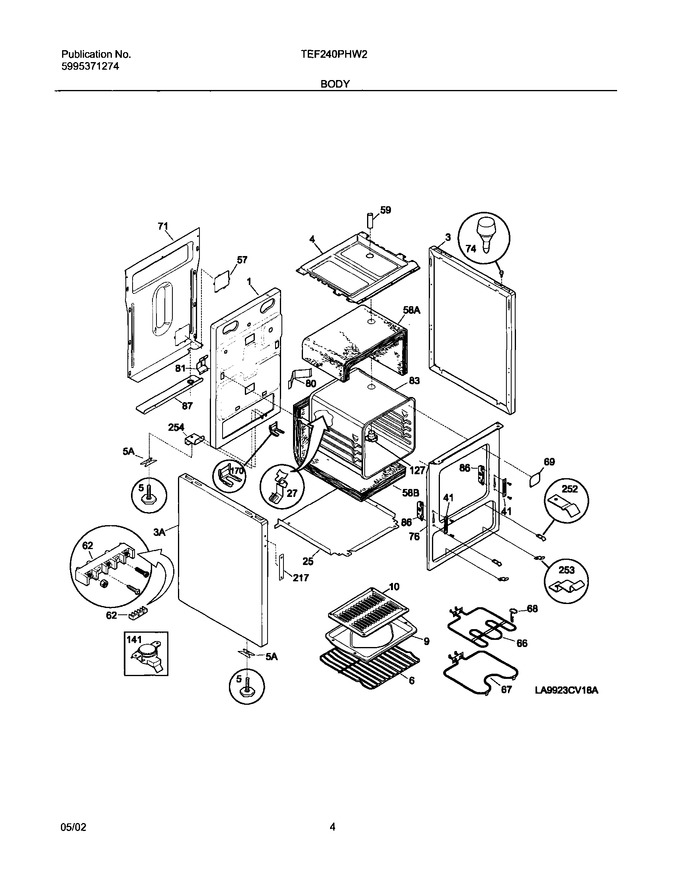

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 318095001 | Panel,main Back |
|
- | |||||
| 3 | 5303324477 | Panel-bodyside,white ,(2) |
|
- | |||||
| 4 | 5303325068 | Shield-insulation |
|
- | |||||
| 5 | 318175510 | Screw-leveling (Replaces: 318175503) |
|
Immediately | $ 24.26 | ||||
| 6 | 5303324869 | Rack-oven |
|
- | |||||
| 9 | 5303317977 | Pan,broiler |
|
- | |||||
| 10 | 5303317976 | Insert,broiler Pan |
|
- | |||||
| 25 | 5303325069 | Shield,oven Bottom |
|
- | |||||
| 27 | 5303284616 | Clip,thermo Bulb Mtg |
|
$ 9.86 | |||||
| 41 | 5303310526 | Cover-hinge Cutout |
|
$ 83.00 | |||||
| 57 | 5304413744 | Cover,access |
|
- | |||||
| 59 | 5303324426 | Tube-oven Vent |
|
- | |||||
| 66 | 318255605 | Element,broil ,2750 W (Replaces: 5303310513) |
|
Immediately | $ 192.78 | ||||
| 68 | 5304403015 | Support,element Hanger |
|
$ 35.04 | |||||
| 69 | 318036411 | Plate-oven Light |
|
- | |||||
| 71 | 318086504 | Panel-cover |
|
- | |||||
| 74 | 318147410 | Bumper,base |
|
- | |||||
| 76 | 318136103 | Frame,oven ,front |
|
- | |||||
| 80 | 5303324473 | Bracket,oven Mounting |
|
- | |||||
| 81 | 318192400 | Spring,oven |
|
$ 312.53 | |||||
| 83 | 318089614 | Liner,oven Complete |
|
- | |||||
| 86 | 5303310524 | Receptacle,hinge |
|
- | |||||
| 87 | 318111810 | Plate-mounting |
|
- | |||||
| 127 | 318317100 | Adapter,vent Tube ,with Converter (Replaces: 5303310542) |
|
$ 75.13 | |||||
| 170 | 318170401 | Anti-tip Bracket |
|
$ 7.61 | |||||
| 217 | 318112102 | Plate,warning |
|
- | |||||
| 252 | 318173700 | Spring,drawer Front |
|
- | |||||
| 253 | 318180401 | Bracket,drawer Front |
|
- | |||||
| 254 | 318175600 | Support,mtg (anti-tip) |
|
- | |||||
| 3A | 318025520 | Panel-bodyside,white ,lh |
|
- | |||||
| 58A | 318133702 | Insulation,oven Wrapper |
|
- | |||||
| 58B | 318133748 | Insulation,oven Back |
|
- | |||||
| 5A | 08013303 | Tee Nut,snap-in ,levelling Screw |
|
- | |||||
| F141 | 318003602 | Thermostat,safety |
|
$ 110.09 | |||||
| F62 | 5304409888 | Terminal Block (Replaces: 5303310518) |
|
Immediately | $ 26.69 | ||||
| F67 | UB400 | Element,bake ,2400 W (Replaces: 5303325092) |
|
Immediately | $ 44.96 | ||||
| NI | 316205500 | Nut-10-32 (Replaces: 5303323144) |
|
$ 11.34 | |||||
| NI | 5303310517 | Plate,ground Strap |
|
- | |||||
| NI | 134178901 | Screw,8 X 0.500 (Replaces: 5303211311) |
|
$ 14.89 | |||||
| NI | 5303323133 | Screw,8-18 X 0.500 |
|
- | |||||
| NI | 5304400428 | Screw,shoulder Head ,8-15a X 0.125 |
|
$ 5.40 | |||||
| NI | 3201861 | Screw,6 X 0.375 |
|
$ 0.76 |
