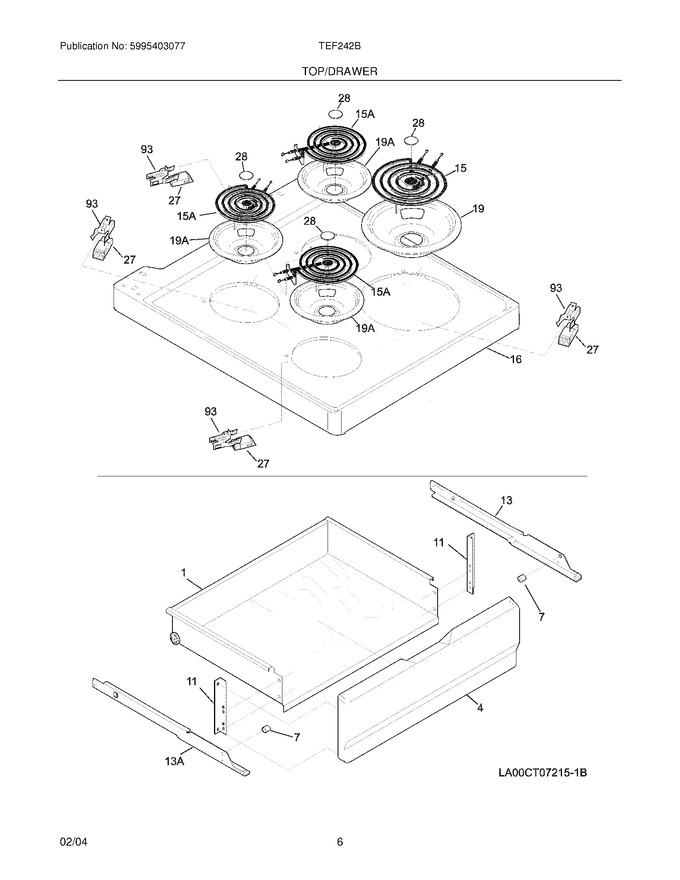

07 - Top/drawer


09 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5303325610		Drawer				$ 212.52
4	318044224		Panel,drawer ,bisque				$ 179.76
7	318014800		Spacer				$ 16.59
11	5303324427		Bracket,drawer Support ,(2)				$ 5.20
13	318018100		Channel-drawer,rh			Immediately	$ 30.01
16	318120924		Main Top,bisque		Appelez-nous	-
28	5303017715		Medallion,1 1/2``dia ,black ,surface Element				$ 64.46
93	5303935058		Bracket-terminal Block   (Replaces: 5303304731)			Immediately	$ 13.81
13A	318018101		Channel-drawer,lh				$ 63.11
F15	3051450		Element,surface ,8`` Large		Appelez-nous	-
F15A	3051449		Element,surface ,6`` Small		Appelez-nous	-
F19	316048413		Pan,surface Element ,large ,chrome   (Replaces: 318067056)			Immediately	$ 9.85
F19A	316048414		Pan,surface Element ,small ,chrome   (Replaces: 318067046)			Immediately	$ 16.11
F27	318223401		Terminal Block,surface Element ,27`` ,black Leads				$ 31.13
F27	318223402		Terminal Block,surface Element ,24`` ,white Leads				$ 38.90
NI	08016432		Screw,truss Head,8-18 X 0.375		Appelez-nous	-
NI	134178901		Screw,8 X 0.500   (Replaces: 5303211311)				$ 14.89
