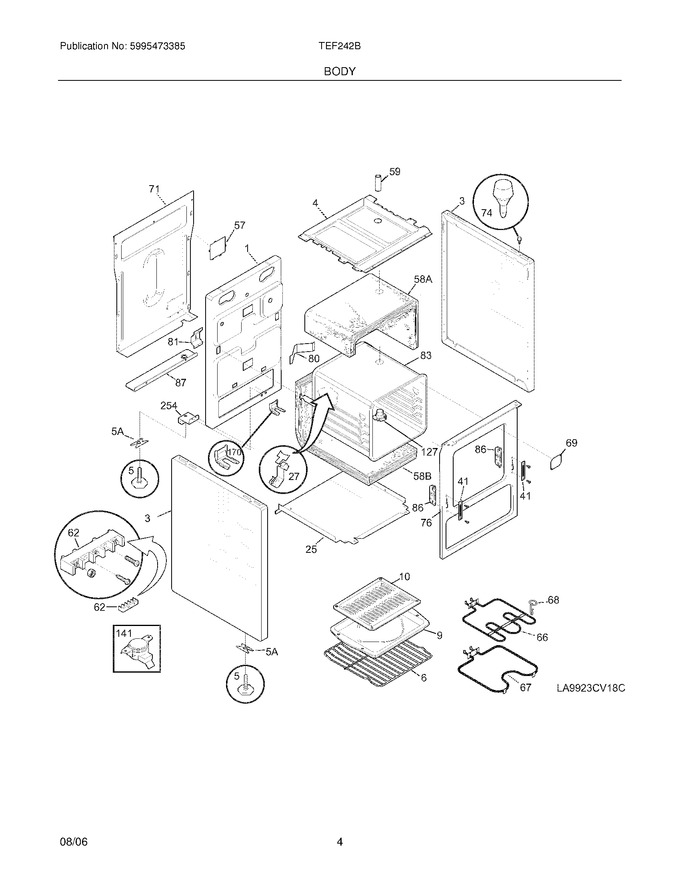

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 318095002 | Panel,main Back |
|
$ 122.90 | |||||
| 3 | 318159712 | Panel,bodyside ,bisque |
|
- | |||||
| 4 | 5303325068 | Shield-insulation |
|
- | |||||
| 5 | 318175510 | Screw-leveling (Replaces: 318175503) |
|
Immediately | $ 24.26 | ||||
| 6 | 318345201 | Rack,oven |
|
$ 82.69 | |||||
| 9 | 5303317977 | Pan,broiler |
|
- | |||||
| 10 | 5303317976 | Insert,broiler Pan |
|
- | |||||
| 25 | 5303325069 | Shield,oven Bottom |
|
- | |||||
| 27 | 5303284616 | Clip,thermo Bulb Mtg |
|
$ 9.86 | |||||
| 41 | 5303310526 | Cover-hinge Cutout |
|
$ 83.00 | |||||
| 57 | 5304413744 | Cover,access |
|
- | |||||
| 59 | 318072543 | Tube,vent ,oven |
|
- | |||||
| 62 | 5303935061 | Terminal Block Kit |
|
- | |||||
| 66 | 318255605 | Element,broil ,2750w (Replaces: 318255600) |
|
Immediately | $ 192.78 | ||||
| 68 | 5304403015 | Support,hanger ,(2) ,broil Element |
|
$ 35.04 | |||||
| 69 | 318036411 | Plate-oven Light |
|
- | |||||
| 71 | 318086506 | Panel,cover |
|
- | |||||
| 74 | 318147412 | Bumper,base |
|
$ 7.33 | |||||
| 76 | 318123100 | Frame,oven Front |
|
- | |||||
| 80 | 5303324473 | Bracket,oven Mounting |
|
- | |||||
| 81 | 318192400 | Spring,oven |
|
$ 312.53 | |||||
| 83 | 318089614 | Liner,oven Complete |
|
- | |||||
| 86 | 5303310524 | Receptacle,hinge |
|
- | |||||
| 87 | 318111810 | Plate-mounting |
|
- | |||||
| 127 | 318317000 | Adapter,vent Tube |
|
$ 19.16 | |||||
| 170 | 5304413730 | Anti-tip & Accessories |
|
- | |||||
| 254 | 318175601 | Support,mtg (anti-tip) |
|
- | |||||
| 58A | 318285001 | Insulation,top & Sides ,oven Wrapper |
|
- | |||||
| 58B | 318285014 | Insulation,rear & Bottom ,oven Wrapper |
|
$ 41.06 | |||||
| 5A | 08013303 | Tee Nut,snap-in ,levelling Screw |
|
- | |||||
| F141 | 318003602 | Thermostat,safety |
|
$ 110.09 | |||||
| F67 | 318255001 | Element,bake ,2400w |
|
Immediately | $ 267.91 | ||||
| NI | 5303323133 | Screw,8-18 X 0.500 |
|
- | |||||
| NI | 5303323139 | Screw,10-24 X 0.906 |
|
$ 13.46 | |||||
| NI | 318264200 | Plate,grounding Strap |
|
$ 23.51 | |||||
| NI | 318199515 | Harness,wiring ,main |
|
- | |||||
| NI | 318235301 | Connector Assy.,w/3 Lugs ,& Instructions (Replaces: 318235300) |
|
$ 29.06 | |||||
| NI | 134178901 | Screw,8 X 0.500 (Replaces: 5303211311) |
|
$ 14.89 | |||||
| NI | 316205500 | Nut-10-32 (Replaces: 5303323144) |
|
$ 11.34 |
