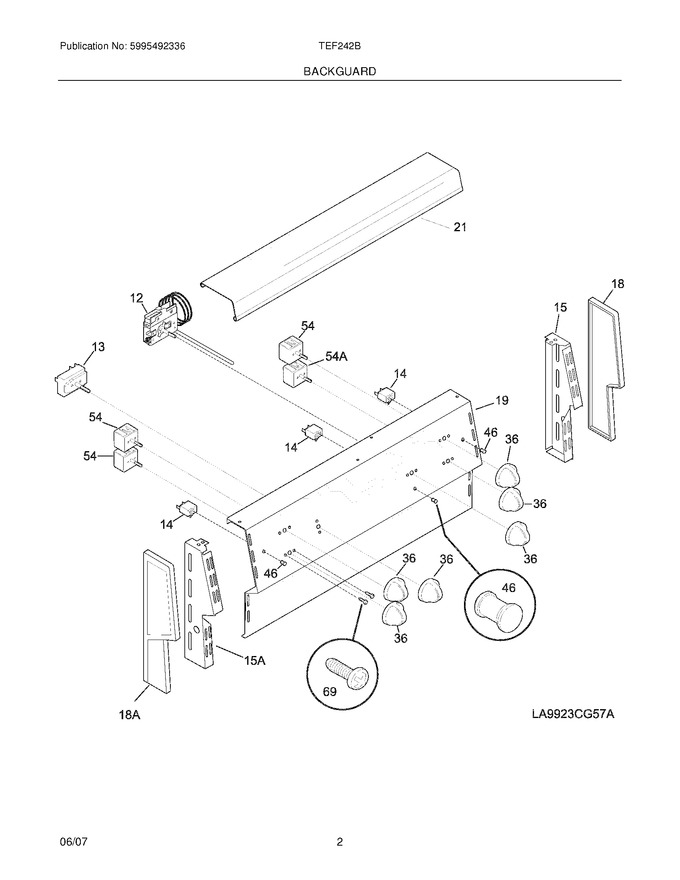

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
15	5303304000		Bracket,end Cap Mtg. ,rh				$ 7.14
18	318254500		End Cap,black ,rh		Appelez-nous	-
19	318005479		Panel,control ,bisque		Appelez-nous	-
21	318350800		Trim,canopy ,black ,backsplash Top				$ 107.52
36	318017106		Knob,control ,black				$ 62.74
46	318044511		Lens,indicator Light			Immediately	$ 25.66
69	5304453272		Screw,mtg. ,no.8-32 X 1/4``		Appelez-nous	-
15A	5303304001		Bracket,end Cap Mtg. ,lh				$ 5.62
18A	318254501		End Cap,black ,lh		Appelez-nous	-
F12	318059310		Thermostat,oven			Immediately	$ 374.73
F13	318057910		Switch-selector				$ 158.03
F14	318369501		Lamp,indicator			Immediately	$ 67.62
F54	318293810		Switch,surface Element ,small			Immediately	$ 100.17
F54A	318293811		Switch,surface Element ,large			Immediately	$ 88.67
NI	318199515		Harness,wiring ,main		Appelez-nous	-
NI	08016432		Screw,truss Head,8-18 X 0.375		Appelez-nous	-
NI	134178901		Screw,8 X 0.500   (Replaces: 5303211311)				$ 14.89
