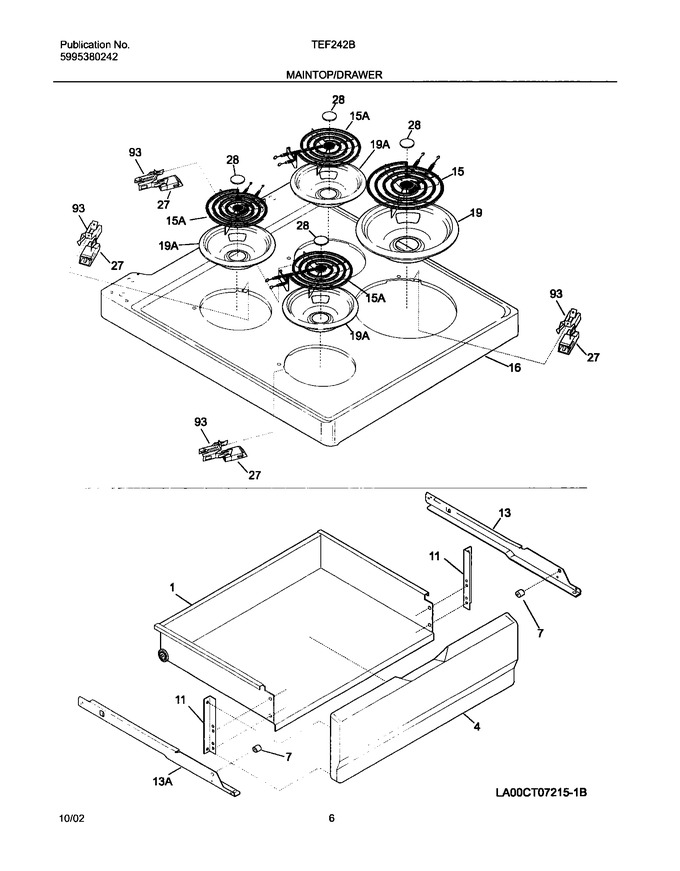

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5303325610 | Drawer |
|
$ 212.52 | |||||
| 4 | 318044221 | Panel-drawer,white |
|
- | |||||
| 7 | 318014800 | Spacer |
|
$ 16.59 | |||||
| 11 | 5303324427 | Bracket,drawer Support ,(2) |
|
$ 5.20 | |||||
| 13 | 318018100 | Channel-drawer,rh |
|
Immediately | $ 30.01 | ||||
| 16 | 318120921 | Main Top,white |
|
$ 451.67 | |||||
| 28 | 5303309002 | Medallion,surface Element ,center Trim |
|
- | |||||
| 93 | 5303324436 | Support,terminal Block ,(4) |
|
$ 24.24 | |||||
| 13A | 318018101 | Channel-drawer,lh |
|
$ 63.11 | |||||
| 15A | 5303325933 | Element,1250 W |
|
- | |||||
| F15 | 5303311320 | Element,surface ,large/8 Inch |
|
- | |||||
| F19 | 316048413 | Pan,surface Element ,large ,chrome (Replaces: 318067056) |
|
Immediately | $ 9.85 | ||||
| F19A | 316048414 | Pan,surface Element ,small ,chrome (Replaces: 318067046) |
|
Immediately | $ 16.11 | ||||
| F27 | RR500 | Terminal Block, Surface Element (Replaces: 5303323704) |
|
Immediately | $ 9.42 | ||||
| NI | 08016432 | Screw,truss Head,8-18 X 0.375 |
|
- | |||||
| NI | 134178901 | Screw,8 X 0.500 (Replaces: 5303211311) |
|
$ 14.89 |
