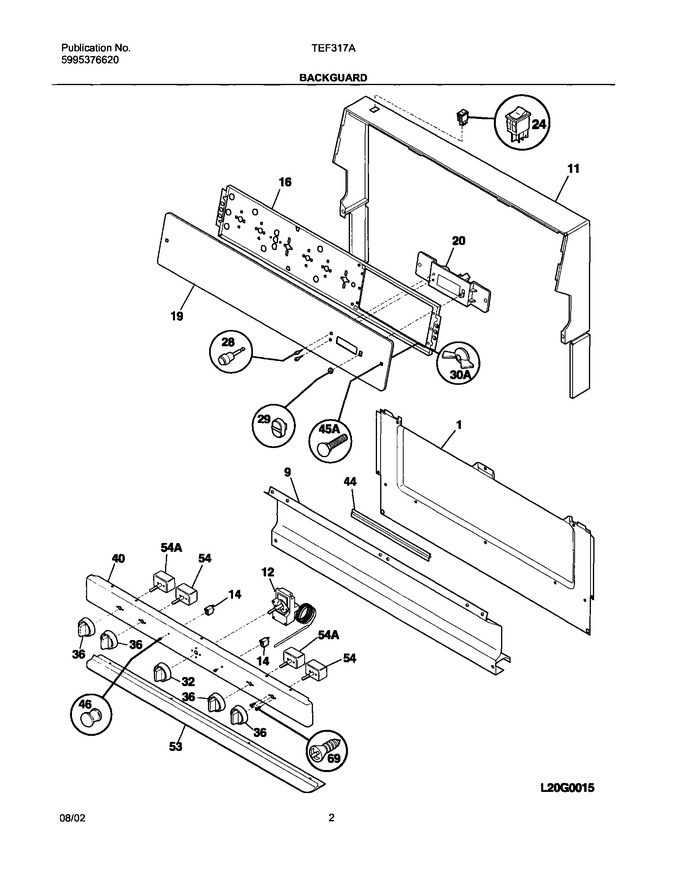

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5303289640		Shield-backguard,rear Wall				$ 144.64
9	316133501		Trim-splasher,white ,lower		Appelez-nous	-
11	316083715		Trim,wrapper ,black		Appelez-nous	-
14	316022503		Light/lamp,indicator ,surface ,250 V			Immediately	$ 70.16
16	316042602		Plate, Instrument Mtg		Appelez-nous	-
19	316034168		Panel,backguard ,black		Appelez-nous	-
28	5303272306		Button,clock Set ,black		Appelez-nous	-
29	5303272305		Button,clock/timer ,black				$ 38.80
32	316102330		Knob,thermostat ,black		Appelez-nous	-
36	316102307		Knob,control ,black		Appelez-nous	-
40	316201800		Panel,manifold ,black		Appelez-nous	-
44	3131468		Bracket, Backguard		Appelez-nous	-
46	316040201		Lens,indicator Light ,red		Appelez-nous	-
53	316238500		Shield,heat ,extrusion		Appelez-nous	-
69	5303288565		Screw,truss Sqdr `8-32 X 3/16 ,switch Mtg				$ 3.12
30A	316064300		Nut,nylon		Appelez-nous	-
45A	316056902		Bolt,fastener ,nylon ,black		Appelez-nous	-
F12	316032409		Thermostat		Appelez-nous	-
F20	316113200		Clock-timer		Appelez-nous	-
F24	5304527841		Switch,oven Light ,black ,rocker   (Replaces: 316118100)			Immediately	$ 11.38
F54	5303051540		Switch,element ,6``		Appelez-nous	-
F54A	5301313767		Switch,element ,8``		Appelez-nous	-
NI	316021109		Screw,8-18 X 0.5 ,black   (Replaces: 316021110)			Immediately	$ 27.50
NI	5303272555		Clip-backguard		Appelez-nous	-
NI	316021109		Screw`8-18 X 0.5 ,chrome			Immediately	$ 27.50
NI	316519700		Screw,cup Pt ,8-18 X 0.375 ,chrome   (Replaces: 316021108)				$ 10.02
