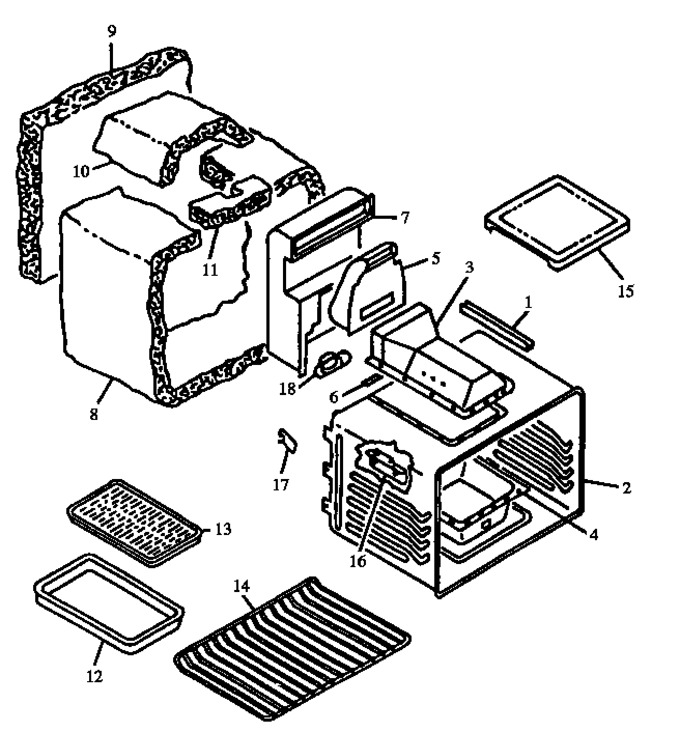

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	Y0304019		Channel, Broil Burner		Appelez-nous	-
2	304079E		Oven Shell Assy		Appelez-nous	-
2	303465E		Oven Shell (gas W/lt)		Appelez-nous	-
3	0306651		Weldm`t, Broil Chamber		Appelez-nous	-
4	Y0063802		Burner Box, Lower		Appelez-nous	-
5	0303463		Assy, Inner Flue		Appelez-nous	-
6	308004CG		Cover, Chip		Appelez-nous	-
7	0304578		Dilution Flue		Appelez-nous	-
8	Y0062947		Sub 41966, Insulation		Appelez-nous	-
9	Y0062945		Sub 41966, Insulation		Appelez-nous	-
10	Y0062946		Sub 41966, Insulation		Appelez-nous	-
11	Y0062944		Sub 41966, Insulation		Appelez-nous	-
12	4396923		Pan, Broiler   (Replaces: 11161CG)			Immediately	$ 52.04
13	4396923		Grid, Broiler (cg)   (Replaces: 304451E)			Immediately	$ 52.04
14	Y0060865		Rack 22 31/32`` W X 15 7/16`` L		Appelez-nous	-
14	WP314763J		Rack,oven   (Replaces: Y067810K)				$ 70.11
14	Y0060864		Rack, Oven		Appelez-nous	-
15	58625CG		Oven Bottom		Appelez-nous	-
16	0062792		Shield, Thermostat Bulb		Appelez-nous	-
17	Y0058852		Bracket, Oven Cavity		Appelez-nous	-
18	Y0303111		Bracket, Broil Orifice		Appelez-nous	-
NI	W11245710		Screw, No.8-18x.406-.344 Waferhd   (Replaces: Y0059445)			Immediately	$ 12.65
NI	0305423		Screw No.8-18x3/8 Hex Hd.		Appelez-nous	-
NI	Y0040848		Probe Recept. Cover Stainless		Appelez-nous	-
NI	0300278		Chip Cover		Appelez-nous	-
