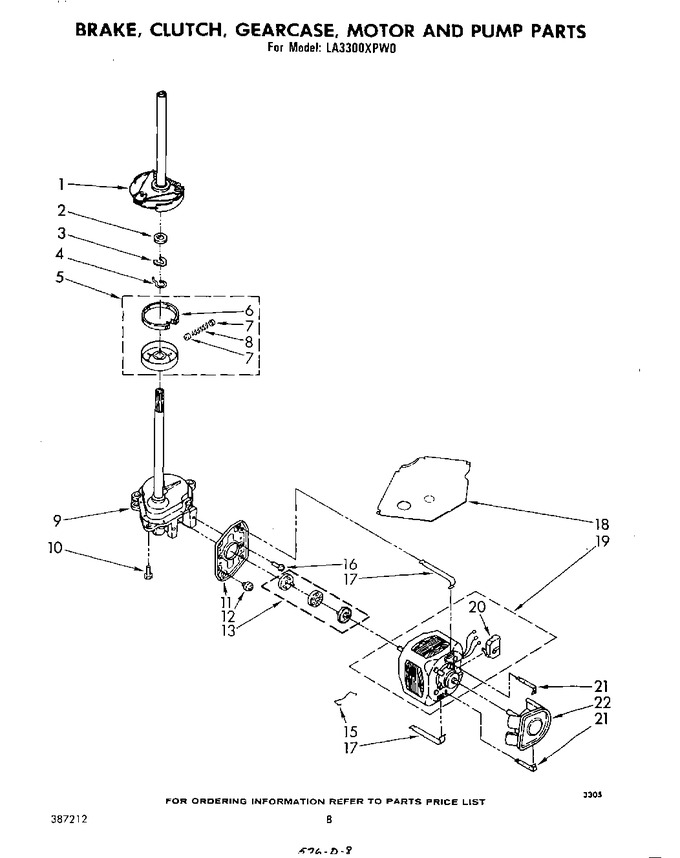

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10820043 | Brake & Drive Tube (complete) (refer To Page 11 For Further Breakdown) (Replaces: 64033) |
|
Immediately | $ 195.58 | ||||
| 2 | WP63292 | Washer, Spin Tube Thrust (Replaces: 63292) |
|
Immediately | $ 6.94 | ||||
| 3 | WPW10080230 | Ring, Spin Tube Support (Replaces: 62697) |
|
$ 10.82 | |||||
| 4 | 285353 | Ring, Retainer (Replaces: 63283) |
|
$ 7.30 | |||||
| 5 | 285785 | Clutch (complete) (Replaces: 63174) |
|
Immediately | $ 61.22 | ||||
| 6 | 285790 | Band & Lining, Clutch (includes Illus. 7 & 8) (Replaces: 63175) |
|
Immediately | $ 38.92 | ||||
| 7 | WP62646 | Cap, Clutch Spring (2) (Replaces: 62646) |
|
$ 6.80 | |||||
| 8 | 285790 | Spring, Clutch (Replaces: 387712) |
|
Immediately | $ 38.92 | ||||
| 9 | 385899 | Gearcase (complete) (refer To Page 12 For Further Breakdown) |
|
- | |||||
| 10 | 62735 | Screw, Gearcase To Base (3) (5/16-24 X 3/4) |
|
- | |||||
| 11 | WP62611 | Plate, Motor Mount To Gearcase (Replaces: 62611) |
|
$ 105.39 | |||||
| 12 | WP62691 | Grommet, Motor (4) (Replaces: 62691) |
|
$ 10.64 | |||||
| 13 | 285753A | Coupling, Motor And Isolation (Replaces: 285140) |
|
Immediately | $ 23.31 | ||||
| 15 | 386838 | Clip, Motor Disconnect Block |
|
- | |||||
| 16 | WP3400516 | Screw, 5/16-24 X 5/8 (2) (Replaces: 98062) |
|
Immediately | $ 6.47 | ||||
| 17 | WPW10086010 | Retainer, Motor (2) (Replaces: 62692) |
|
$ 7.15 | |||||
| 18 | W10838408 | Shield, Tub To Motor (Replaces: 63209) |
|
$ 33.69 | |||||
| 19 | WP661600 | Motor, Main Drive (Replaces: 62535) |
|
Immediately | $ 207.58 | ||||
| 20 | 62851 | Switch, Main Drive Motor |
|
- | |||||
| 21 | WP8546127 | Retainer, Pump (2) (Replaces: 62700) |
|
$ 7.33 | |||||
| 22 | WP3363394 | Pump (complete) (Replaces: 64076) |
|
Immediately | $ 55.49 |
