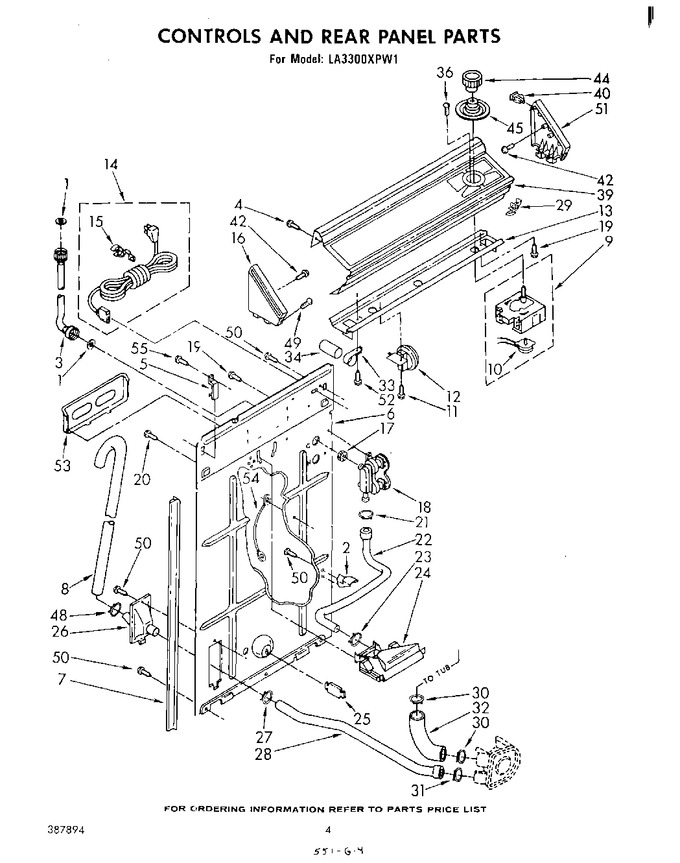

03 - Controls And Rear Panel


04 - Agitator, Basket And Tub


05 - Miscellaneous


06 - Brake, Clutch, Gearcase, Motor And Pump


07 - Machine Base


08 - Wiring Harness


09 - Brake And Drive Tube


10 - Gearcase


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP16123		Washer, Water Inlet Hose (4) (1-1/16 X 5/8)   (Replaces: 16123)				$ 6.93
2	63162		Pin, Cabinet Guide (2)		Appelez-nous	-
3	WP89503		Hose, Water Inlet (2)   (Replaces: 81339)			Immediately	$ 21.68
4	WP681414		Screw, 10-16 X 1/2   (Replaces: 687128)			Immediately	$ 7.07
5	DE81-08146A		Hinge, Console (2)   (Replaces: 62748)				$ 158.42
6	100092565		Panel, Rear   (Replaces: 63730)				$ 112.28
7	WP62747		Pad, Rear Panel   (Replaces: 62747)				$ 23.63
8	WP96743		Hose, Drain   (Replaces: 96743)				$ 90.93
9	64098		Timer, Control (60 Hz.)		Appelez-nous	-
10	63493		Motor, Timer		Appelez-nous	-
11	WP90767		Screw, 8a X 3/8   (Replaces: 90767)			Immediately	$ 7.04
12	64102		Switch, Water Level			Immediately	$ 3.01
13	63688		Bracket, Control		Appelez-nous	-
14	W10820044		Cord, Power   (Replaces: 62734)				$ 128.46
15	62733		Strain Relief, Power Cord		Appelez-nous	-
16	63790		Cap, End (l.h.)		Appelez-nous	-
17	WP96160		Screen, Filter (2)   (Replaces: 96160)				$ 10.54
18	285805		Valve, Water Mixing   (Replaces: 358992)			Immediately	$ 49.57
19	WP3351614		Screw, 10-24 X 3/8 (2)   (Replaces: 90864)			Immediately	$ 6.26
20	WP681414		Screw, Ground (10-16 X 1/2)   (Replaces: 359262)			Immediately	$ 7.07
21	WP596669		Clamp, Hose   (Replaces: 272846)			Immediately	$ 7.56
22	WP3357328		Hose, Vacuum Break   (Replaces: 62662)			Immediately	$ 22.30
23	WP596669		Clamp, Hose   (Replaces: 371503)			Immediately	$ 7.56
24	WP3347034		Break, Vacuum   (Replaces: 63029)			Immediately	$ 67.75
25	WP8519200		Support, Rear Panel   (Replaces: 63290)			Immediately	$ 17.01
26	WPW10358149		Connector, Drain   (Replaces: 63206)			Immediately	$ 43.34
27	WP356138		Clamp, Hose   (Replaces: 272856)			Immediately	$ 7.67
28	WP3348552		Hose, Pump To Drain Connector   (Replaces: 63172)				$ 76.37
29	W10113937		Clip, Ground   (Replaces: 357572)				$ 9.75
30	WP371502		Clamp, Hose   (Replaces: 371502)				$ 10.38
31	WP285655		Clamp, Hose   (Replaces: 272858)			Immediately	$ 7.55
32	285871		Hose, Pump To Tub   (Replaces: 62731)			Immediately	$ 24.01
33	357030		Clamp, Capacitor				$ 18.98
34	WP8572717		Capacitor, Motor Start (mfd 189, 110 Volts)   (Replaces: 357021)			Immediately	$ 72.13
36	WP356418		Screw, Timer Mounting (10-32 X 1) (2)   (Replaces: 96435)				$ 7.13
39	64088		Panel, Console				$ 26.57
40	689559		Nut, Push-in (2)		Appelez-nous	-
42	355326		Screw, 13/16 X 5/8 (4)		Appelez-nous	-
44	386565		Knob, Timer		Appelez-nous	-
45	64139		Dial, Timer				$ 118.10
48	WP356138		Clamp, Hose   (Replaces: 356138)			Immediately	$ 7.67
49	WP388326		Screw, 8-18 (2) (panel To Top)   (Replaces: 64211)				$ 7.30
50	WP3390631		Screw, 10-16 X 3/8   (Replaces: 62863)				$ 7.04
51	63796		Cap , End (r.h.)		Appelez-nous	-
52	WP681414		Screw,10-16 X 1/2   (Replaces: 343641)			Immediately	$ 7.07
53	63020		Rack, Literature				$ 30.32
54	364089		Wire, Ground		Appelez-nous	-
55	WP308685		Screw, 10-16 X 1/2 (2)   (Replaces: 9416643)			Immediately	$ 7.08
