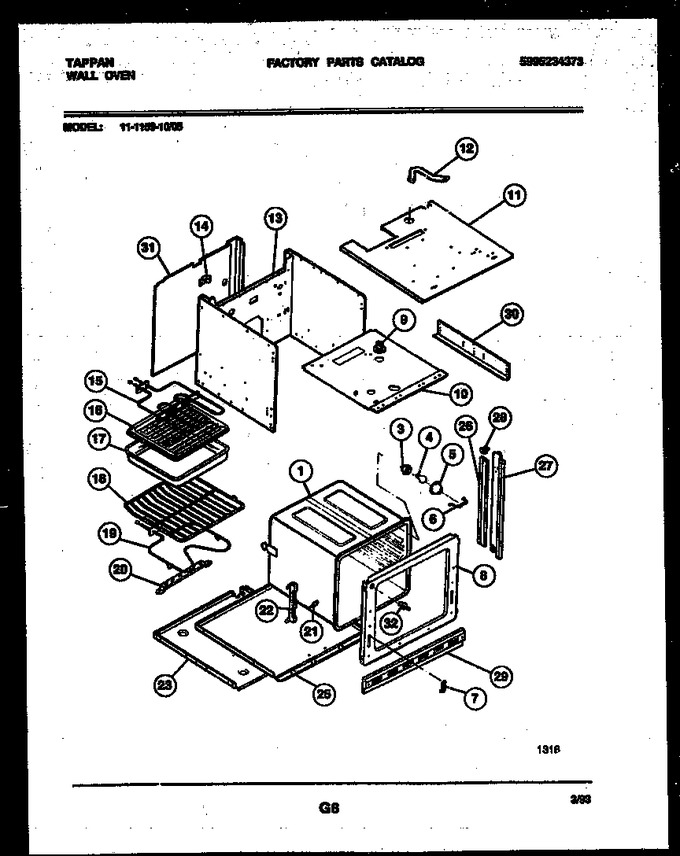

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5303296957		Liner, Oven		Appelez-nous	-
3	08011171		Receptacle		Appelez-nous	-
4	3201908		Bulb		Appelez-nous	-
5	5304524341		Lens   (Replaces: 3201911)			Immediately	$ 14.18
6	3204483		Retainer-lens		Appelez-nous	-
7	3019063		Retainer - Door (2)		Appelez-nous	-
8	5303296866		Frame-front		Appelez-nous	-
9	5303206498		Vent-tube Assembly		Appelez-nous	-
10	3202461		Shield-top		Appelez-nous	-
11	3202462		Wrapper-top		Appelez-nous	-
12	3016301		Duct - Vent Tube		Appelez-nous	-
13	3202448		Wrapper		Appelez-nous	-
14	3016281		Spring, Oven (2)		Appelez-nous	-
15	5303016247		Element, Broil				$ 223.97
16	3205234		Insert, Broiler Pan		Appelez-nous	-
17	5303292159		Pan-broiler		Appelez-nous	-
18	318345216		Rack (2)   (Replaces: 5303296873)				$ 103.90
19	318255101		Element, Bake   (Replaces: 3202440)				$ 185.70
20	3016248		Support, Broil Element		Appelez-nous	-
21	3201632		Spacer, Oven (2)		Appelez-nous	-
22	3201631		Hinge Assembly (2)				$ 58.22
23	3202447		Wrapper-base		Appelez-nous	-
25	3202446		Shield-insulator		Appelez-nous	-
26	3016280		Trim, Inner, Lh		Appelez-nous	-
26	3016279		Trim, Inner, Rh		Appelez-nous	-
27	5303271105		Trim-side Outer (2)		Appelez-nous	-
28	5303271107		Trim-cap Lh		Appelez-nous	-
28	5303271106		Trim-cap Rh		Appelez-nous	-
29	3202237		Trim-base		Appelez-nous	-
30	3016278		Support, Height (2)		Appelez-nous	-
31	3202444		Cover-wire		Appelez-nous	-
32	5301314211		Switch-oven Light				$ 95.29
*84072	3016323		Insulation-wrap		Appelez-nous	-
*84073	3016313		Plug Button		Appelez-nous	-
*84073	3016319		Insulation-back		Appelez-nous	-
*84073	3201910		Clip-thermo Bulb		Appelez-nous	-
