SELECT A DIAGRAM

01 - Cover


02 - Backguard


03 - Body


04 - Top/drawer


05 - Door

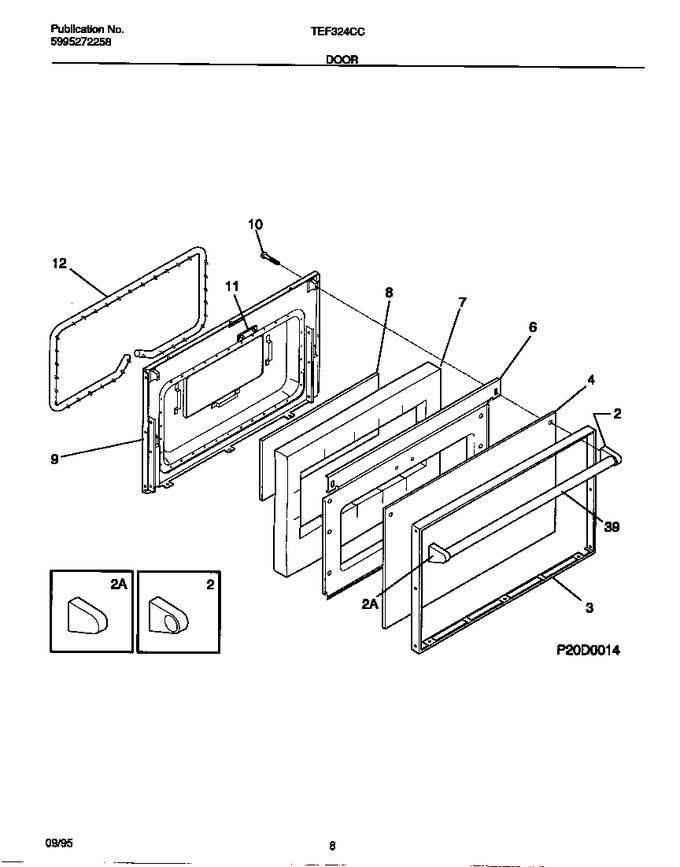

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
3	316067804		Trim-oven Door, White		Appelez-nous	-
4	316019710		Glass-oven Door, White, Outer		Appelez-nous	-
6	5303283832		Shield-insulation, White		Appelez-nous	-
7	316439802		Insulation,oven Door   (Replaces: 316076401)			Immediately	$ 192.78
8	316050303		Glass-oven Door, Inner		Appelez-nous	-
9	316066603		Liner-oven Door		Appelez-nous	-
10	316001001		Screw-handle Mtg, Wafer Head, 10-24 X 3.375		Appelez-nous	-
12	5303202011		Seal-oven Door, Non Self-clean				$ 166.84
39	316008305		Handle-door, White, Oven		Appelez-nous	-
49	5303307194		End Cap-handle, White, Rh		Appelez-nous	-
49	5303307195		End Cap-handle, White, Lh		Appelez-nous	-
60	5303015372		Cover-oven Front		Appelez-nous	-
*18248	316071600		Plate Warning/caution		Appelez-nous	-
*18249	5303212671		Screw, Cr Pan Hd Sems, 8-32bp X 1.00		Appelez-nous	-
*18250	5303212762		Screw,8-18 X 1/2		Appelez-nous	-
*18251	5303269859		Screw 8-18 X 1/2 Black		Appelez-nous	-
*18252	5303271648		Screw, Wafer Hd Sq Dr, 8-18(ab) X 1/2			Immediately	$ 13.46
*18253	5303280311		Screw, Waf Hd Sdr, 10-32 X 5/16				$ 6.62
*18254	5303285179		Screw-oven Door, Wafer Head, 8-32(t) X 1/2				$ 13.46
*18255	5303288567		Screw, 8-18 X 3/8, (4)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
