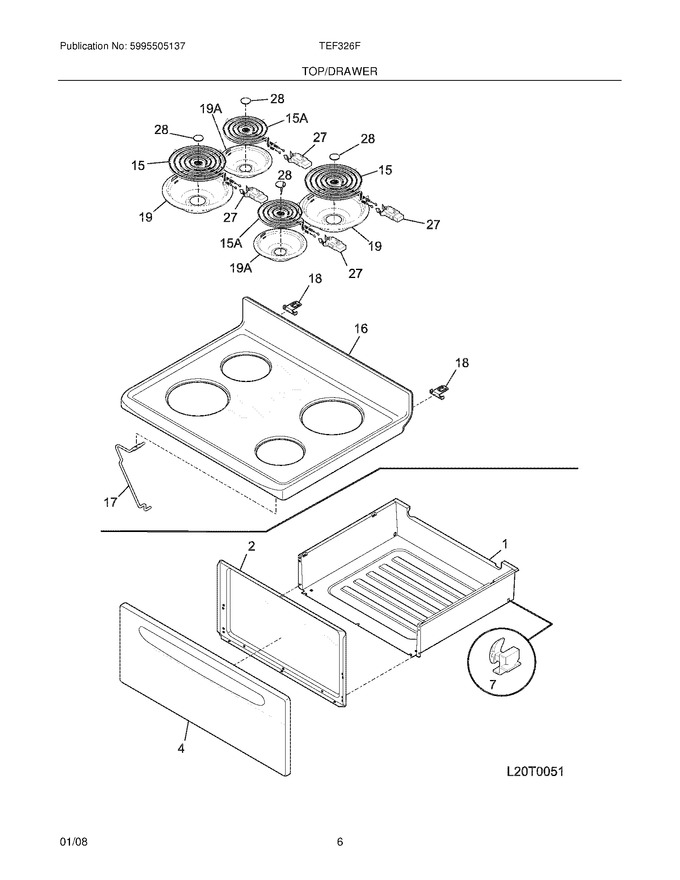

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316011503		Drawer				$ 131.51
2	316231500		Liner,drawer				$ 54.40
4	316231328		Panel,drawer ,black   (Replaces: 316231306)				$ 66.18
7	3051163		Glide,drawer ,rear			Immediately	$ 19.41
16	316202387		Main Top,black   (Replaces: 316202362)				$ 448.19
17	316057601		Rod,support ,main Top				$ 64.49
18	316436600		Hinge Bracket,maintop ,(2)				$ 45.36
27	5303935058		Terminal Block Kit,surface Element   (Replaces: 5303912666)			Immediately	$ 13.81
28	5303017715		Medallion,1 1/2``dia ,black ,surface Element				$ 64.46
28	3017801		Medallion, Stainless Steel, Surf Elem		Appelez-nous	-
F15	316442300		Element,surface ,8`` ,large   (Replaces: 318372203)			Immediately	$ 59.16
F15A	318372210		Element,surface ,6`` ,small   (Replaces: 318372200)			Immediately	$ 20.21
F19	A316222301		Pan-surface Element, Large/8 Inch, Black Enamel   (Replaces: 316048400)			Immediately	$ 12.53
F19A	A316222201		Pan-surface Element, Small/6 Inch, Black Enamel   (Replaces: 316048401)			Immediately	$ 14.64
FNI	316580420		Wiring Harness,surface Element   (Replaces: 316253501)			Immediately	$ 196.47
NI	5308014215		Screw`6-20 X 0.312				$ 2.28
NI	316021109		Screw,hex Head Cup Pt ,8-18 X 0.375 ,black   (Replaces: 316021105)			Immediately	$ 27.50
NI	316021109		Screw,8-18 X 0.5 ,black   (Replaces: 316021110)			Immediately	$ 27.50
NI	316519700		Screw,cup Pt ,8-18 X 0.375 ,chrome   (Replaces: 316021108)				$ 10.02
