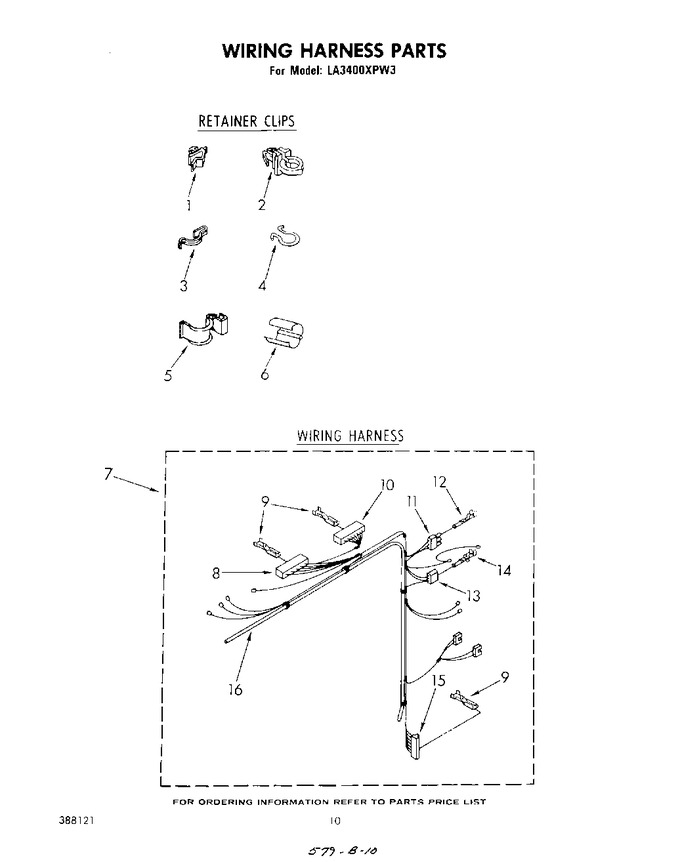

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	62732		Clip, Harness		Appelez-nous	-
2	62749		Clip, Harness				$ 18.77
3	WP98997		Clip, Harness   (Replaces: 98997)				$ 9.98
4	387551		Clip, Harness (3)		Appelez-nous	-
5	WP90016		Clip, Harness   (Replaces: 90016)				$ 10.19
6	63523		Protector, Harness				$ 169.95
7	64110		Wiring Harness & Pressure Switch Hose		Appelez-nous	-
8	352090		Block, Disconnect (timer) (white)		Appelez-nous	-
9	352088		Terminal, Female				$ 5.83
10	W10876590		Block, Disconnect (black) (timer)   (Replaces: 352089)				$ 11.48
11	WP62889		Receptacle, Terminal (3-way) (lid Switch)   (Replaces: 62889)				$ 6.88
12	WP94614		Terminal (female)   (Replaces: 94614)				$ 6.90
13	353424		Plug, Terminal (3-way) (power Cord)				$ 18.95
14	94613		Terminal, (male)		Appelez-nous	-
15	WP62505		Block, Disconnect (motor)   (Replaces: 62505)				$ 21.35
16	WP353244		Hose, Pressure Switch   (Replaces: 353406)			Immediately	$ 53.94
