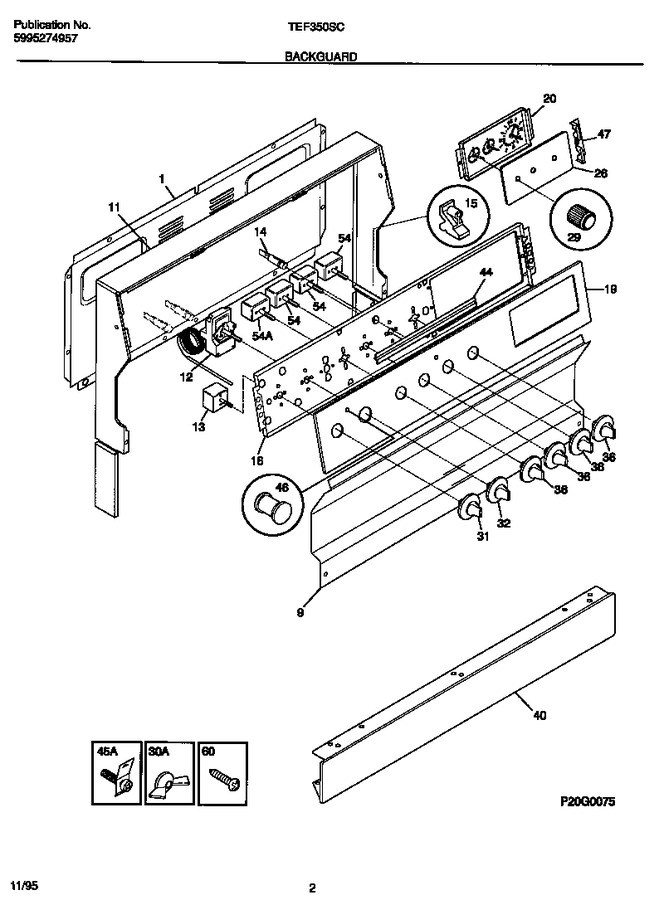

SELECT A DIAGRAM

01 - Cover


02 - Backguard


03 - Body


04 - Top/drawer


05 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3131123		Shield-backguard,rear Wall		Appelez-nous	-
9	316043602		Trim-splasher, Almond		Appelez-nous	-
11	316057002		Trim-wrapper		Appelez-nous	-
12	3204581		Thermostat-oven		Appelez-nous	-
13	316023200		Switch-selector				$ 176.44
14	3201726		Light/lamp, Indicator, Blue, 250 V		Appelez-nous	-
15	5303131237		Support-backguard,(2)		Appelez-nous	-
16	316042602		Plate, Instrument Mtg		Appelez-nous	-
19	316034116		Panel-control, Metal, Black		Appelez-nous	-
20	316038107		Clock/timer, Analog 3 Stem				$ 160.60
26	3201695		Lens-clock, Glass		Appelez-nous	-
29	316029000		Knob-clock		Appelez-nous	-
30	316064300		Nut,nylon		Appelez-nous	-
31	316087241		Knob-selector, (6) Pos		Appelez-nous	-
32	316087239		Knob-thermostat		Appelez-nous	-
36	316087240		Knob-control, Black		Appelez-nous	-
40	316062329		Panel, Manifold, Black		Appelez-nous	-
44	3131468		Bracket, Backguard		Appelez-nous	-
45	316056902		Bolt-fastener, Nylon		Appelez-nous	-
46	316065801		Lens-light/lamp,indicator ,red		Appelez-nous	-
47	3201700		Retainer, Clock Glass, (2)		Appelez-nous	-
54	5303935086		Switch-6`` Element   (Replaces: 5303285142)			Immediately	$ 51.95
54	5303285143		Switch, 8`` Element		Appelez-nous	-
60	316021109		Screw,hex, 8-18 X 3/8, Back\bodyside   (Replaces: 316021105)			Immediately	$ 27.50
*02160	5303272555		Clip-backguard		Appelez-nous	-
*02161	5303281584		Screw, Truss Head, 8-18 X 1/2		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
