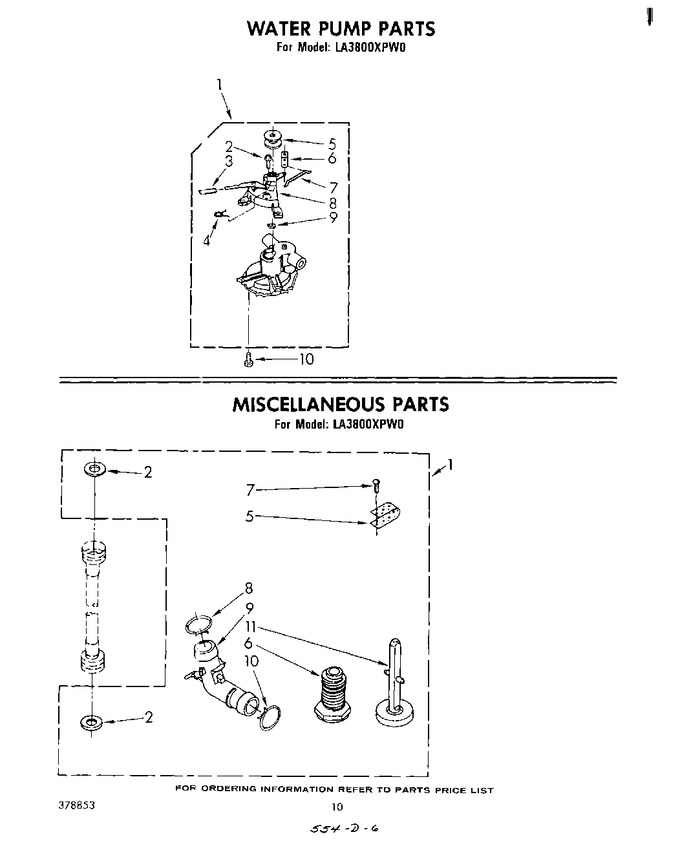

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	350365		Pump (complete)   (Replaces: 358036)			Immediately	$ 116.12
1	375976		Miscellaneous Parts Bag		Appelez-nous	-
2	WP16123		Washer, Inlet Hose (1-1/16 X 5/8) (4)   (Replaces: 16123)				$ 6.93
2	WP273556		Screw, 10-12 X 5/8   (Replaces: 273556)			Immediately	$ 7.04
3	96175		Sleeve		Appelez-nous	-
4	96266		Spring, Toggle		Appelez-nous	-
5	359630		Pulley, Pump		Appelez-nous	-
5	22965		Strap, Ground		Appelez-nous	-
6	355538		Lever, Valve		Appelez-nous	-
6	WP367594		Foot, Front (2)   (Replaces: 367594)			Immediately	$ 18.46
7	132848		Screw, Ground (10-24 X 1)		Appelez-nous	-
7	96264		Rod, Connecting		Appelez-nous	-
8	WP356138		Clamp, Hose   (Replaces: 356138)			Immediately	$ 7.67
8	383750		Bearing Block Assembly		Appelez-nous	-
9	96265		Wick, Oil		Appelez-nous	-
9	95440		Connector, Hose				$ 22.55
10	386011		Screw, Pump To Gearcase (2)		Appelez-nous	-
10	WP285655		Clamp, Hose   (Replaces: 370445)			Immediately	$ 7.55
11	WP358594		Foot, Rear (2)   (Replaces: 358594)				$ 12.24

    View Diagram in Separate Window       Print Part List
