SELECT A DIAGRAM

01 - Cover

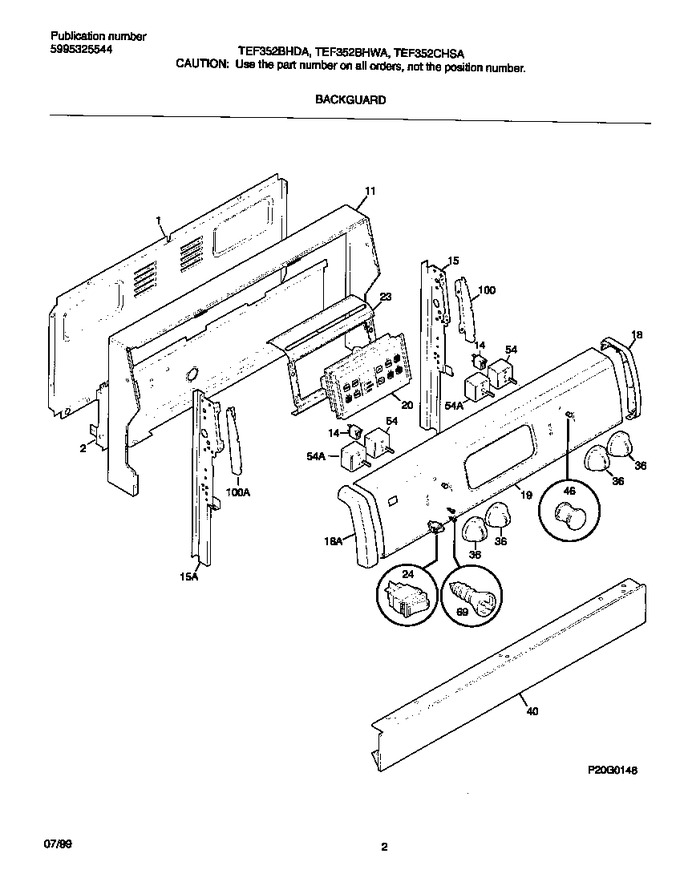

02 - Backguard


03 - Body


04 - Top/drawer


05 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316081601		Shield-backguard, Rear Wall		Appelez-nous	-
2	316015907		Shield-backguard, Inner		Appelez-nous	-
11	316061852		Trim-wrapper,textured ,white		Appelez-nous	-
14	316022504		Light-indicator,250v		Appelez-nous	-
15	316023109		Support,backguard ,lh		Appelez-nous	-
15	316023108		Support-backguard, Rh		Appelez-nous	-
18	316115210		End Cap,rh		Appelez-nous	-
18	316115211		End Cap,lh		Appelez-nous	-
19	316123604		Panel-control,metal		Appelez-nous	-
20	316101001		Clock/timer, Electronic				$ 419.79
23	316115101		Bracket Timer		Appelez-nous	-
24	5304527842		Switch-rocker, Oven Light ,white   (Replaces: 316118101)			Immediately	$ 16.13
36	316025106		Knob-control, Infinite Sw, White				$ 57.64
40	316064030		Panel-manifold,white		Appelez-nous	-
46	316040201		Lens-light/lamp, Indicator, Red		Appelez-nous	-
54	5303935086		Switch,infinite , 6`` Element   (Replaces: 316021500)			Immediately	$ 51.95
54	316436001		Switch,infinite , 8`` Element   (Replaces: 316021501)			Immediately	$ 51.68
*86480	316081303		Shield-oven Door, Black, Top		Appelez-nous	-
*86481	316519700		Screw,cup Pt ,8-18 X 0.375 ,hinge ,ind Lght Brkt,manifol   (Replaces: 316021108)				$ 10.02
*86482	316021109		Screw-8-18x1/2 Tr Sqd Black   (Replaces: 316021110)			Immediately	$ 27.50
*86483	316021122		Screw,8-18 X 0.375 ,truss Hd White		Appelez-nous	-
*86484	316085600		Insulator-shield Thermostt		Appelez-nous	-
*86485	316112500		Template, Anti-tip Bracket				$ 3.55
*86486	5303292005		Screw-switch/handle,8-32 X 5/32		Appelez-nous	-
*86487	316101525		Overlay-clock		Appelez-nous	-
*86489	316021109		Screw,hex ,8-18 X 0.375 ,back\bodyside   (Replaces: 316021105)			Immediately	$ 27.50
100A	316128300		Shield-backguard,rh		Appelez-nous	-
100B	316128301		Shield-backguard,lh		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
