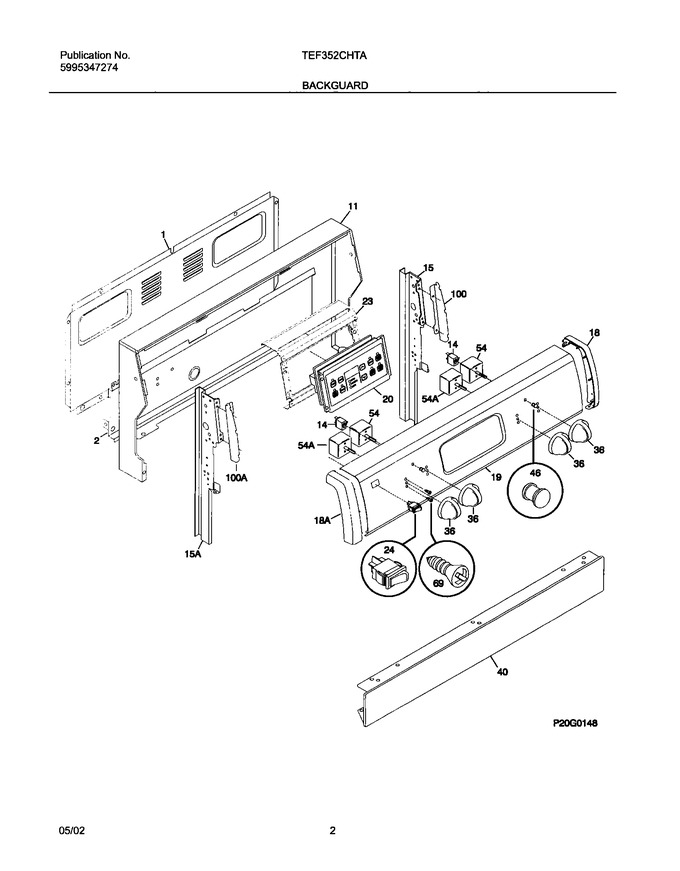

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316081600		Shield-backguard, Rear Wall		Appelez-nous	-
2	316015907		Shield-backguard, Inner		Appelez-nous	-
11	316061853		Trim-wrapper,textured ,almond		Appelez-nous	-
14	316022503		Light/lamp,indicator ,surface ,250 V			Immediately	$ 70.16
15	316023108		Support-backguard, Rh		Appelez-nous	-
18	5303935173		End Cap,almond ,rh & Lh		Appelez-nous	-
19	316123614		Panel Control,almond		Appelez-nous	-
23	316131501		Bracket-timer		Appelez-nous	-
36	316025107		Knob-control, Infinite Sw, Almond, (4)		Appelez-nous	-
40	316064015		Panel-manifold, Almond		Appelez-nous	-
46	316040201		Lens-light/lamp, Indicator, Red		Appelez-nous	-
69	5303292005		Screw,8-32 X 5/32 ,switch/handle		Appelez-nous	-
100	316128301		Shield-backguard,lh		Appelez-nous	-
100	316128300		Shield-backguard,rh		Appelez-nous	-
15A	316023109		Support,backguard ,lh		Appelez-nous	-
20A	316101526		Overlay-clock,almond		Appelez-nous	-
F20	316101001		Clock/timer, Electronic				$ 419.79
F24	316118102		Switch-oven Light,rocker ,almond		Appelez-nous	-
F54	5303935086		Switch,infinite , 6`` Element   (Replaces: 316021500)			Immediately	$ 51.95
F54A	316436001		Switch,infinite , 8`` Element   (Replaces: 316021501)			Immediately	$ 51.68
NI	316021124		Screw,truss Hd ,8-18 X 0.375 ,almond		Appelez-nous	-
NI	316021109		Screw,hex Head Cup Pt ,8-18 X 0.375 ,black,back/bodyside   (Replaces: 316021105)			Immediately	$ 27.50
NI	316021109		Screw,8-18 X 0.500 ,black   (Replaces: 316021110)			Immediately	$ 27.50
NI	316519700		Screw,cup Pt ,8-18 X 0.375 ,chrome ,hinge,ind Light,manifold Panel   (Replaces: 316021108)				$ 10.02
