SELECT A DIAGRAM

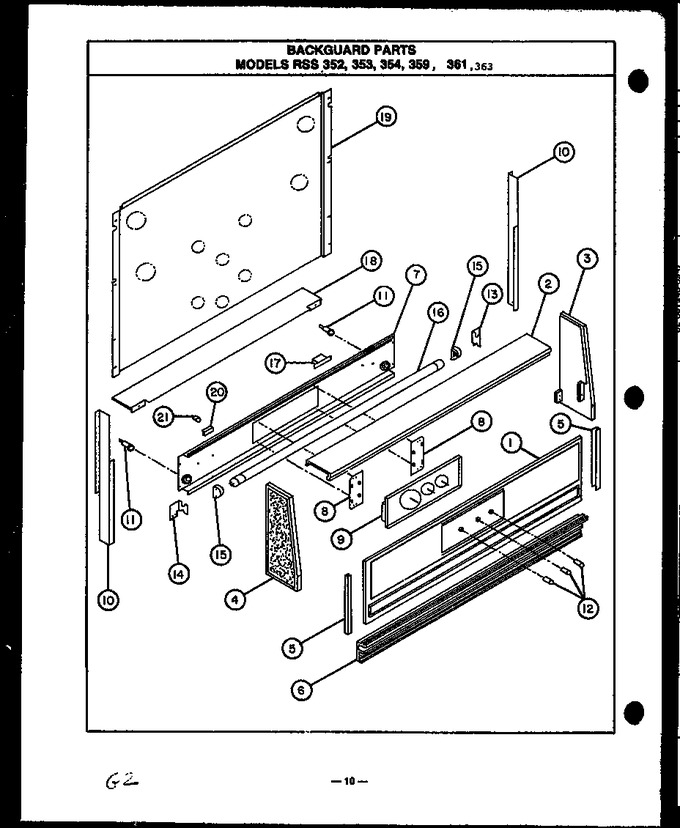

01 - Backguard Parts Models Rss 352


02 - Gas Components


03 - Lower Oven Cabinet Assy


04 - Lower Oven Electrical Components


05 - Lower Storage Drawer


06 - Oven Door Parts


07 - Page 1


08 - Upper Oven Electrical Components


09 - Upper Oven Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	0058703		Glass, Backguard		Appelez-nous	-
1	0060199		Glass, Backguard		Appelez-nous	-
1	0060192		Clock - Timer		Appelez-nous	-
2	0060623		Trim, Top, Backguard		Appelez-nous	-
3	0060696		Sub 301002, End Cap Bkgd. R.h.		Appelez-nous	-
4	Y0060695		End Cap, Bkgd L.h.		Appelez-nous	-
5	0063575		Channel, Glass		Appelez-nous	-
18	Y0060069		Heat Sheild Backguard		Appelez-nous	-
19	Y0062790		Rear Cover Plate		Appelez-nous	-
20	0071964		Socket, Starter		Appelez-nous	-
21	0071920		Starter, Flourescent		Appelez-nous	-
	NOTE:		Rss363 Upper Oven Parts - Note: On Models Starting At Sn 6807760, Some Parts Are Not Used Or Have Changed. Verify Part Number Before Ordering		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
