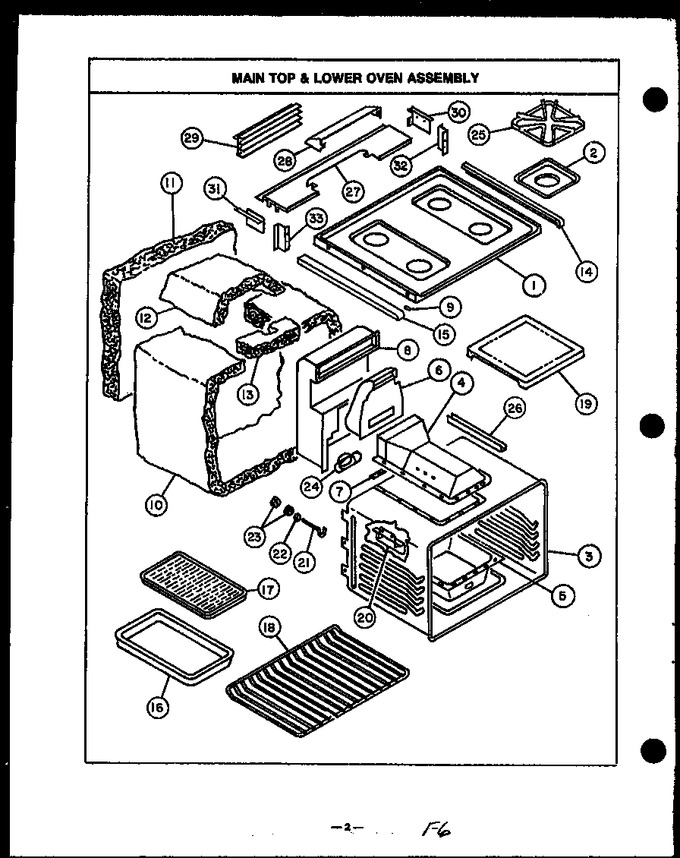

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10124580 | Main Top - White |
|
- | |||||
| 1 | W10124579 | Main Top - Almond |
|
- | |||||
| 1 | W10124578 | Maintop, Harvest |
|
- | |||||
| 2 | WPY0060872 | Burner Bowl (Replaces: Y0060872) |
|
$ 25.26 | |||||
| 3 | Y0063647 | Oven Shell |
|
- | |||||
| 4 | Y0062892 | Chamber, Broiler |
|
- | |||||
| 5 | Y0063802 | Burner Box, Lower |
|
- | |||||
| 6 | 0062770 | Flue |
|
- | |||||
| 7 | 0062754 | Gasket, Oven Back |
|
- | |||||
| 8 | 0063552 | Flue, Dilution |
|
- | |||||
| 9 | Y0062445 | Spacer, Nylon (.14``) |
|
- | |||||
| 10 | Y0062947 | Sub 41966, Insulation |
|
- | |||||
| 11 | Y0062945 | Sub 41966, Insulation |
|
- | |||||
| 12 | Y0062946 | Sub 41966, Insulation |
|
- | |||||
| 13 | Y0062944 | Sub 41966, Insulation |
|
- | |||||
| 14 | Y0061499 | Top Trim R.h |
|
- | |||||
| 15 | 0061498 | Trim Main Top, L.h., Bright Fi |
|
- | |||||
| 16 | Y0011161 | Sub 11161cg, Broiler Pan |
|
- | |||||
| 17 | 4396923 | Broiler Grid (Replaces: Y0098682) |
|
Immediately | $ 52.04 | ||||
| 18 | WP314763J | Rack,oven (Replaces: Y0067810) |
|
$ 70.11 | |||||
| 19 | Y0062891 | Oven Bottom |
|
- | |||||
| 20 | 0062792 | Shield, Thermostat Bulb |
|
- | |||||
| 21 | Y0091536 | Hook Bolt |
|
- | |||||
| 22 | Y0071876 | Washer |
|
- | |||||
| 23 | 0071881 | Sub 41847, Hex Nut |
|
- | |||||
| 24 | Y0062799 | Cup, Duct |
|
- | |||||
| 25 | Y0060529 | Grate |
|
- | |||||
| 26 | Y0063775 | Channel, Br. Brnr. |
|
- | |||||
| NOTE: | Rss307 Upper Oven Parts - Note 1 - On Models Starting At Sn 6807760, Some Parts Are Not Used Or Have Changed. Verify Part Number Before Ordering |
|
- |
