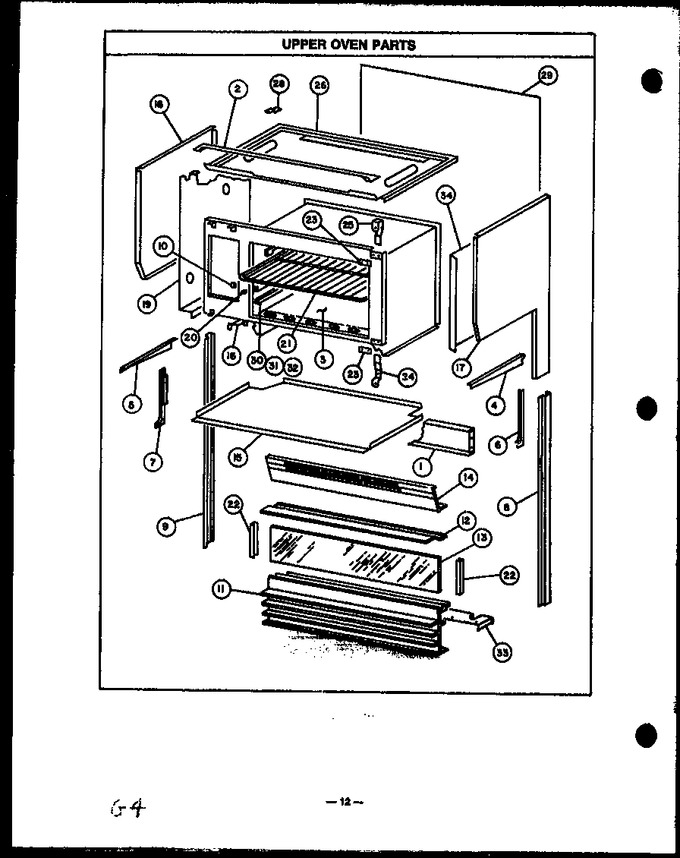

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	0071064		Panel, Surface Light		Appelez-nous	-
2	Y0094406		Flue Trim		Appelez-nous	-
3	0078002		Oven Bottom		Appelez-nous	-
4	0071972		Trim Strip, R.h. Side		Appelez-nous	-
5	Y0071973		Trim Strip, L.h. Side		Appelez-nous	-
6	Y0091477		Trim Support		Appelez-nous	-
7	Y0091478		Trim Support		Appelez-nous	-
8	0071096		Support, Cntl Panel, R.h.		Appelez-nous	-
9	Y0071095		Support, Cntl Panel, L.h.		Appelez-nous	-
10	0075826		Plate, Door Strike		Appelez-nous	-
11	0063166		Sub 61802 Trim, Lower, Splash		Appelez-nous	-
12	0071971		Rear Trim		Appelez-nous	-
13	0071968		Glass, Splashplate		Appelez-nous	-
14	0063165		Trim, Lower Decorative		Appelez-nous	-
15	0071317		Jacket Bottom		Appelez-nous	-
16	0094204		Door Guide		Appelez-nous	-
17	W10126551		Jacket End-r.h., Avocado		Appelez-nous	-
17	W10126553		Jacket End-r.h., Harvest Wheat		Appelez-nous	-
17	W10126552		Jacket End-r.h., Coffee		Appelez-nous	-
17	W10126554		Jacket End-r.h., Almond		Appelez-nous	-
17	W10126555		Jacket End-r.h., White		Appelez-nous	-
18	W10124640		Jacket End-l.h., Avocado		Appelez-nous	-
18	W10124644		Jacket End-l.h., White		Appelez-nous	-
18	W10124641		Jacket End-l.h., Coffee		Appelez-nous	-
18	W10124643		Jacket End-l.h., Almond		Appelez-nous	-
18	W10124642		Jacket End-l.h., Harvest Wheat		Appelez-nous	-
19	Y0094391		Sub 60714, Retainer, Insul.		Appelez-nous	-
20	Y0078034		Strike, Door, Upper Oven		Appelez-nous	-
21	Y0078001		Oven Rack, Upper		Appelez-nous	-
22	Y0071954		Trim, Glass		Appelez-nous	-
23	0093625		Cover Plate Front Frame		Appelez-nous	-
24	Y0094356		Hinge, Bottom		Appelez-nous	-
25	Y0094357		Hinge, Top		Appelez-nous	-
26	0074091		Jacket Top, Rsd		Appelez-nous	-
27	W10124601		Main Body		Appelez-nous	-
28	Y0073060		Receptacle Cover		Appelez-nous	-
29	Y0062464		Cover, Rear		Appelez-nous	-
30	0078003		Sub 78003cg, Side Panel, Rh		Appelez-nous	-
31	0078175		Side Panel		Appelez-nous	-
32	0078172		Panel, Back		Appelez-nous	-
33	0062423		Shield, Heat		Appelez-nous	-
34	Y0062256		Retainer, Insulation		Appelez-nous	-
	NOTE:		Rss361 Upper Oven Parts - Note 1 - On Models Starting At Sn 6807760, Some Parts Are Not Used Or Have Changed. Verify Part Number Before Ordering		Appelez-nous	-
