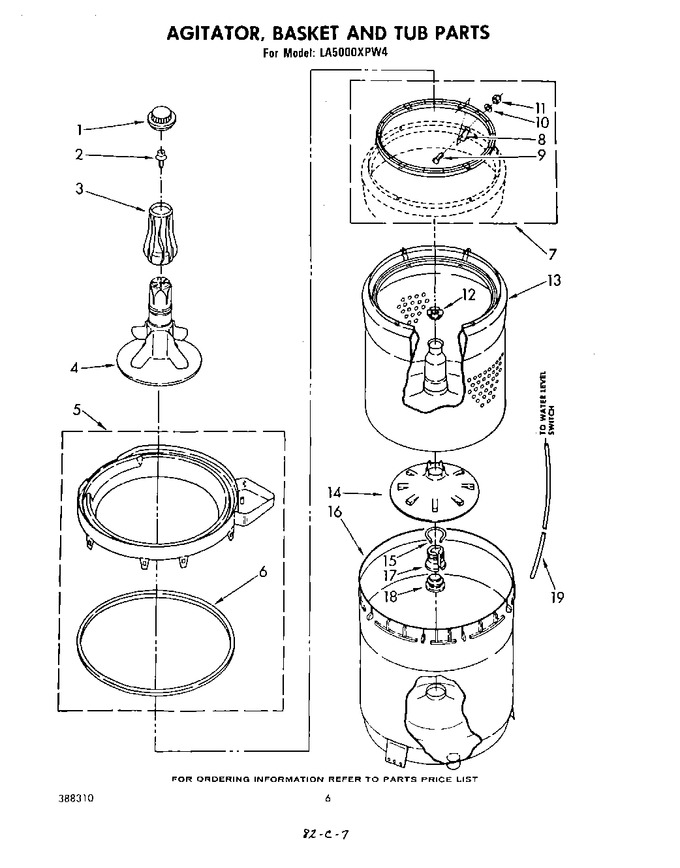

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP3355758 | Cap, Agitator (Replaces: 63911) |
|
Immediately | $ 8.10 | ||||
| 2 | WP358237 | Screw & Washer (5-16-24 X 1) (Replaces: 358237) |
|
Immediately | $ 7.97 | ||||
| 3 | WP63753 | Filter, Manual (Replaces: 63753) |
|
$ 195.96 | |||||
| 4 | 387838 | Agitator (Replaces: 63750) |
|
$ 196.79 | |||||
| 5 | 63223 | Tub Ring |
|
- | |||||
| 6 | WP3359586 | Gasket, Tub Ring (Replaces: 63222) |
|
$ 81.11 | |||||
| 7 | 285350 | Clothes Guard Repair Kit |
|
- | |||||
| 8 | 63552 | Clip, Clothes Guard (6) |
|
- | |||||
| 9 | WP486754 | Screw, 6-32 X 3/8 (6) (Replaces: 486754) |
|
$ 6.75 | |||||
| 10 | 680829 | Washer, Nylon (6) |
|
- | |||||
| 11 | 285348 | Locknut (2) |
|
- | |||||
| 12 | WP21366 | Nut, Spanner (Replaces: 21366) |
|
Immediately | $ 8.00 | ||||
| 13 | 63780 | Basket & Clothes Guard (includes Illus. 6) |
|
$ 12.41 | |||||
| 14 | 63546 | Plate, Restrictor |
|
- | |||||
| 15 | 62942 | Lock, Restrictor |
|
$ 7.59 | |||||
| 16 | 63125 | Tub |
|
$ 234.68 | |||||
| 17 | WP389140 | Block, Basket Drive (Replaces: 357782) |
|
Immediately | $ 24.74 | ||||
| 18 | W10814296 | Gasket, Centerpost (Replaces: 62665) |
|
Immediately | $ 8.26 | ||||
| 19 | WP353244 | Hose, Pressure Switch (Replaces: 386757) |
|
Immediately | $ 53.94 |
