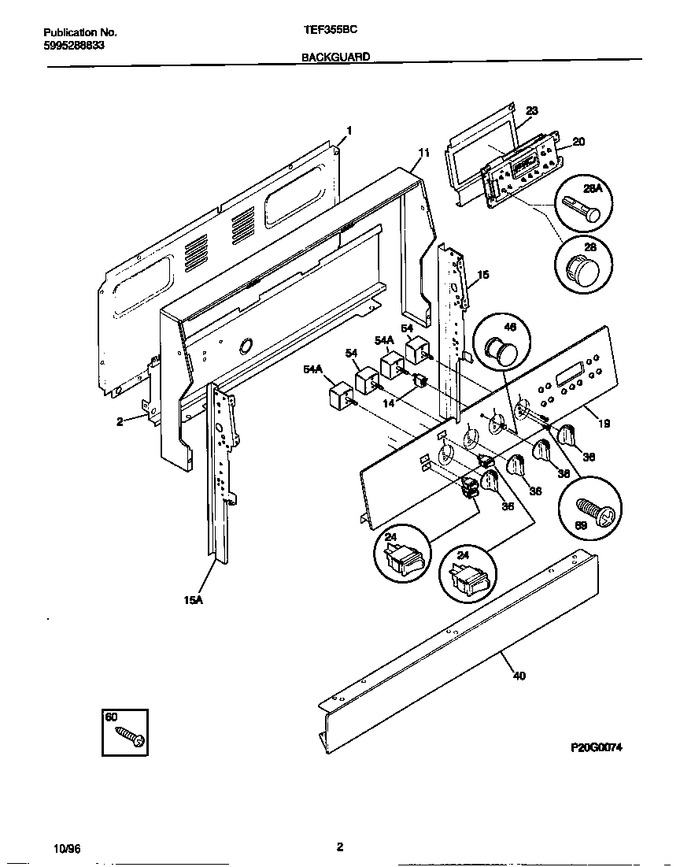

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316081601		Shield-backguard, Rear Wall		Appelez-nous	-
2	316015907		Shield-backguard, Inner		Appelez-nous	-
11	316061841		Trim-wrapper, Black		Appelez-nous	-
14	316022503		Light-lamp, Indicator, 250 V			Immediately	$ 70.16
15	316023110		Support-backguard, Rh		Appelez-nous	-
15	316023111		Support-backguard, Lh		Appelez-nous	-
19	316076506		Panel-control		Appelez-nous	-
20	316064500		Clock/timer, Eoc		Appelez-nous	-
23	316079003		Bracket-clock Mtg		Appelez-nous	-
24	5304527841		Switch-light/lamp, Rocker Type, Black   (Replaces: 316005602)			Immediately	$ 11.38
28	316015102		Push Button, Clock/timer/eoc, Black				$ 50.35
28	316036900		Shaft-push Button, Clock/timer/eoc, (11)				$ 11.24
36	316015206		Knob-control, Black		Appelez-nous	-
40	316062329		Panel, Manifold, Black		Appelez-nous	-
46	316040201		Lens-light/lamp, Indicator, Red		Appelez-nous	-
54	5303935086		Switch-6`` Element   (Replaces: 316021500)			Immediately	$ 51.95
54	316436001		Switch-8`` Element   (Replaces: 316021501)			Immediately	$ 51.68
60	316021109		Screw,hex, 8-18 X 3/8, Back\bodyside   (Replaces: 316021105)			Immediately	$ 27.50
69	5303292005		Screw-switch Mtg, 8-32 X 5/32, (6)		Appelez-nous	-
*01480	5303281584		Screw, Truss Head, 8-18 X 1/2		Appelez-nous	-
