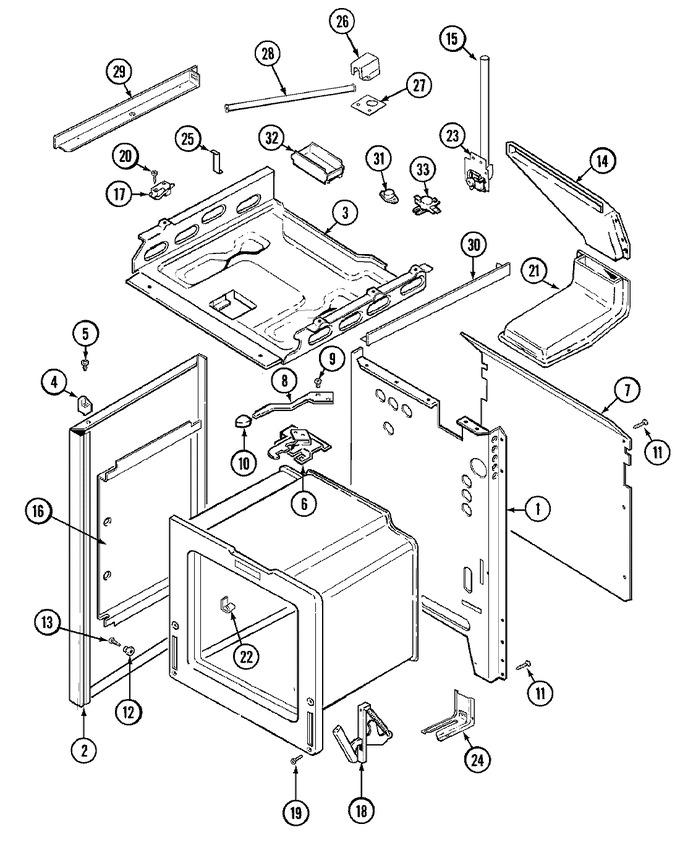

01 - Body
02 - Door/drawer
03 - Gas Controls
04 - Oven/base
05 - Top Assy.
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 4002F188-80 | Back, Main | 01 |
|
- | ||||
| 2 | 2618F095-70 | Panel, Side (lt-blk) | 06 |
|
- | ||||
| 2 | 2618F079-70 | Panel, Side (rt-blk) | 01 |
|
- | ||||
| 2 | 2618F096-70 | Panel, Side (rt-blk) | 06 |
|
- | ||||
| 2 | 2618F078-70 | Panel, Side (lt-blk) | 01 |
|
- | ||||
| 3 | 4011F223-80 | Box, Burner | 01 |
|
- | ||||
| 4 | 8010P087-60 | Spacer, Main Top (lt) | 01 |
|
- | ||||
| 4 | 8010P088-60 | Spacer, Main Top (rt) | 01 |
|
- | ||||
| 5 | WP74004005 | Screw (Replaces: 7118P013-60) | 01 |
|
$ 6.95 | ||||
| 6 | 8002P027-60 | Latch Assy. | 01 |
|
- | ||||
| 6 | 4804F028-60 | Insulation, Latch Assy. | 01 |
|
- | ||||
| 7 | 4005F355-51 | Cover, Main Wire | 01 |
|
- | ||||
| 8 | 8009P015-60 | Lever Lock | 01 |
|
- | ||||
| 8 | 7109P015-60 | Washer | 01 |
|
- | ||||
| 9 | WP4159193 | Screw, Lever (Replaces: 7101P230-60) | 01 |
|
$ 4.29 | ||||
| 10 | 7701P089-60 | Handle, Latch (wht) | 01 |
|
- | ||||
| 10 | 7112P003-60 | Clip, Latch Handle | 01 |
|
- | ||||
| 11 | W11233072 | Screw (Replaces: 7101P290-60) | 01 |
|
Immediately | $ 12.62 | |||
| 12 | W10857933 | Spacer, Side Panel (Replaces: 8004P024-60) | 01 |
|
$ 7.07 | ||||
| 13 | W11772394 | Screw (Replaces: 7101P300-60) | 01 |
|
Immediately | $ 10.94 | |||
| 14 | 7403P249-60 | Switch, Hi Limit | 01 |
|
- | ||||
| 14 | 4022W004-45 | Extension, Vent Box | 01 |
|
- | ||||
| 15 | 8026P021-60 | Tube, Air Duct | 01 |
|
- | ||||
| 16 | 3804F103-51 | Retainer, Insulation (side) | 01 |
|
- | ||||
| 17 | 7403P228-60 | Switch, Door Latch | 01 |
|
- | ||||
| 17 | 3801F267-45 | Bracket, Switch | 01 |
|
- | ||||
| 18 | 7106P033-60 | Hinge, Door | 01 |
|
- | ||||
| 19 | WP4159193 | Screw, Hinge (Replaces: 7101P017-60) | 01 |
|
$ 4.29 | ||||
| 20 | 7101P031-60 | Screw | 01 |
|
- | ||||
| 21 | 4006W113-45 | Box, Vent | 01 |
|
- | ||||
| 22 | WP7112P004-60 | Clip, Thermostat (Replaces: 7112P004-60) | 01 |
|
Immediately | $ 11.07 | |||
| 23 | 7427P013-60 | Fan Assy. | 01 |
|
- | ||||
| 24 | WP3801F656-51 | Bracket, Anti-tip (Replaces: 3801F218-51) | 01 |
|
Immediately | $ 4.69 | |||
| 24 | WP7101P485-60 | Screw, Bracket (Replaces: 7101P289-60) | 01 |
|
$ 26.33 | ||||
| 25 | 3801F292-51 | Bracket | 01 |
|
- | ||||
| 26 | 4006F134-51 | Box, Air Tube | 01 |
|
- | ||||
| 27 | 4011F156-51 | Bottom, Air Box Tube | 01 |
|
- | ||||
| 28 | 7506P124-60 | Tube, Air | 01 |
|
- | ||||
| 29 | 3604F173-51 | Shield, Heat (lt) | 01 |
|
- | ||||
| 30 | 3601F221-45 | Baffle, Vent Cover | 01 |
|
$ 28.30 | ||||
| 30 | 3604F174-51 | Shield, Heat (rt) | 01 |
|
- | ||||
| 31 | 7403P004-60 | Switch, Therm Lock | 01 |
|
- | ||||
| 31 | WP74004005 | Screw (Replaces: 7101P076-60) | 01 |
|
$ 6.95 | ||||
| 32 | 3807F420-51 | Support, Thermal Disc | 01 |
|
- | ||||
| 33 | 7403P275-60 | Switch, High Limit | 01 |
|
- | ||||
| 33 | 8004P007-60 | Support, Tube | 01 |
|
- | ||||
| 34 | 7402P043-60 | Cord, Power | 01 |
|
- |
