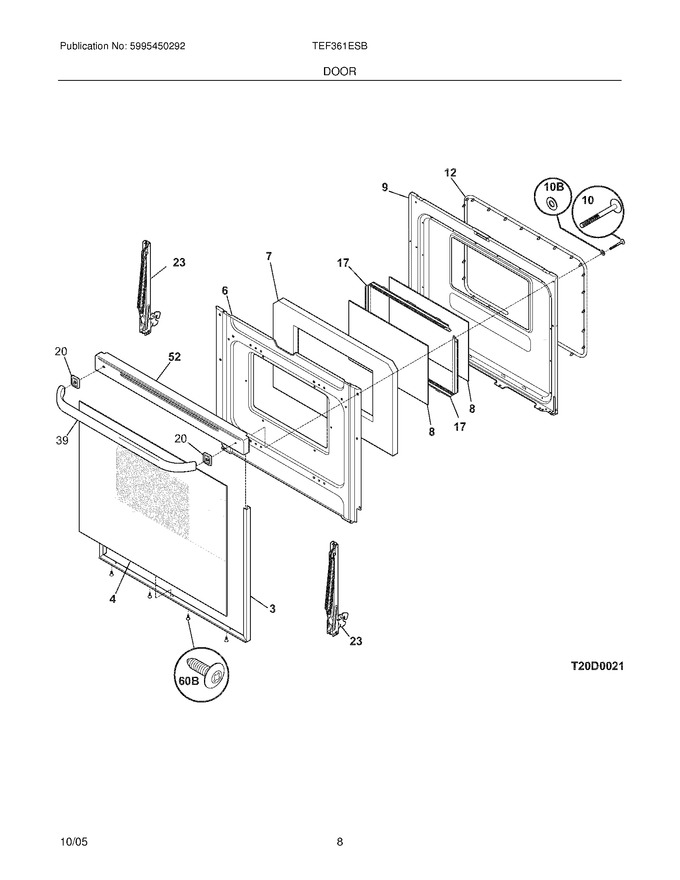

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
3	5303935318		Trim Kit-door,3 Sided ,white ,w/tape   (Replaces: 5303935243)			Immediately	$ 83.64
4	316406403		Glass,oven Door ,white ,outer				$ 176.70
6	316406309		Shield,wool		Appelez-nous	-
7	316405601		Insulation,oven Door				$ 84.68
8	316427701		Glass,oven Door ,inner				$ 103.74
9	316423703		Liner,oven Door				$ 191.05
10	316001009		Screw,waf Hd Sq `10-24 X 1.88 ,(2) ,handle Mtg				$ 15.17
12	316405000		Seal,oven Door			Immediately	$ 179.17
17	316408803		Spacer,door Glass ,(2)				$ 32.28
20	316248401		Spacer,handle ,white ,(2)		Appelez-nous	-
23	316437703		Hinge,oven Door				$ 89.54
39	5304530039		Handle,oven Door ,white   (Replaces: 316248301)			Immediately	$ 167.43
52	316575500		Cap,door Trim ,white   (Replaces: 316405100)			Immediately	$ 122.09
10B	316008401		Washer,3/4 Od X 1/4 Id ,steel				$ 11.34
60B	316021109		Screw,8-18 X 0.5 ,black   (Replaces: 316021110)			Immediately	$ 27.50
NI	316418900		Screw,sims Lp ,no.8-32 X 5/16`` ,black				$ 14.18
NI	316433603		Label,anti-tip				$ 3.55
NI	316021109		Screw`8-18 X 0.5 ,chrome			Immediately	$ 27.50
NI	5303285179		Screw,wafer Head `8-32t X 0.500 ,black				$ 13.46
