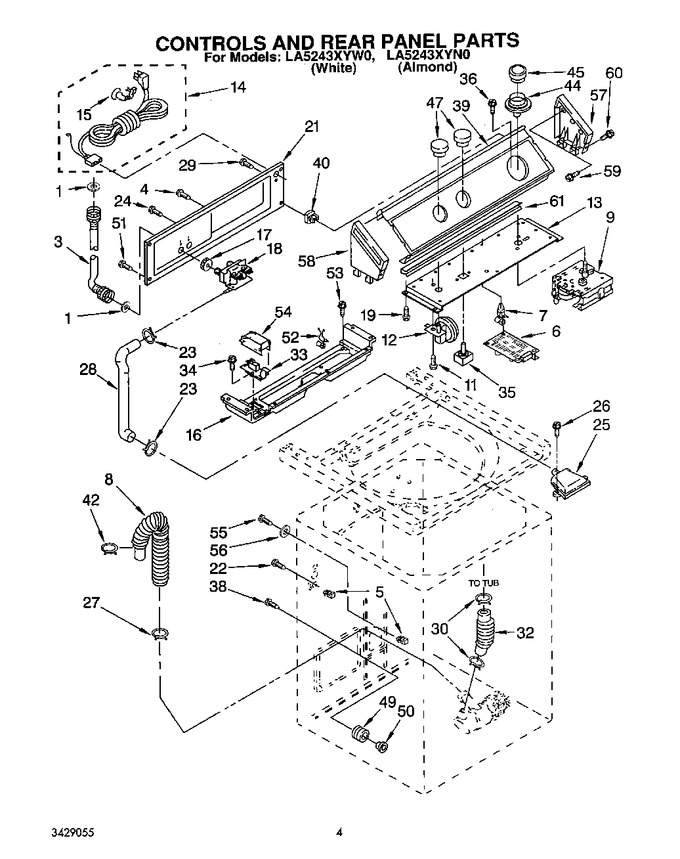

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP16123		Washer, Water Inlet Hose (4) (1-1/16 X 5/8)   (Replaces: 16123)				$ 6.93
3	WP89503		Hose, Water Inlet (2) (alt.)   (Replaces: 366108)			Immediately	$ 21.68
3	WP89503		Hose, Water Inlet (2)   (Replaces: 660028)			Immediately	$ 21.68
3	WP89503		Hose, Water Inlet (2) (alt.)   (Replaces: 81339)			Immediately	$ 21.68
3	WP89503		Hose, Water Inlet (2) (alt.)   (Replaces: 385057)			Immediately	$ 21.68
4	3429189		Screw, Console Cover (4)		Appelez-nous	-
5	3428879		Clip, Harness		Appelez-nous	-
6	3429904		Board, Control		Appelez-nous	-
7	3429401		Stand Off		Appelez-nous	-
8	285666		Hose, Drain (10 Ft.) (not Included)   (Replaces: 661577)			Immediately	$ 56.11
8	285664		Hose, Drain (5 1/2 Ft.)   (Replaces: 3357092)			Immediately	$ 33.20
9	3430101		Timer, Control (60 Hz.)		Appelez-nous	-
11	WP3400872		Screw, Switch Mtg.   (Replaces: 3934035)				$ 6.95
12	3429554		Switch, Water Level		Appelez-nous	-
13	3429264		Bracket, Control		Appelez-nous	-
14	3430218		Cord, Power		Appelez-nous	-
15	W11733005		Strain Relief, Power Cord   (Replaces: 63848)				$ 11.64
16	3428435		Pan, Console		Appelez-nous	-
17	WP96160		Screen, Filter (2)   (Replaces: 96160)				$ 10.54
18	285805		Valve, Water Mixing   (Replaces: 3429537)			Immediately	$ 49.57
19	WP3400872		Screw, Bracket Mtg.   (Replaces: 3429682)				$ 6.95
21	3428433		Cover, Console Rear		Appelez-nous	-
22	WP3351614		Screw, Power Cord Ground   (Replaces: 3428971)			Immediately	$ 6.26
23	WP596669		Clamp, Hose (2)   (Replaces: 371501)			Immediately	$ 7.56
24	WP3351614		Screw, Mixing Valve Mtg. (2)   (Replaces: 3428971)			Immediately	$ 6.26
25	3429917		Water Inlet (upper)		Appelez-nous	-
25	3429918		Water Inlet (lower)		Appelez-nous	-
26	3934040		Screw, Water Inlet Mtg. (2)		Appelez-nous	-
27	WP356138		Clamp, Hose   (Replaces: 356138)			Immediately	$ 7.67
28	3428574		Hose, Valve To Water Inlet		Appelez-nous	-
29	WP3351614		Screw, Ground   (Replaces: 3428971)			Immediately	$ 6.26
30	WP616099		Clamp, Hose   (Replaces: 370448)			Immediately	$ 7.03
32	3430217		Hose, Pump To Tub		Appelez-nous	-
33	3934248		Switch, Lid		Appelez-nous	-
34	WP3400872		Screw, Switch Mounting (2)   (Replaces: 3429682)				$ 6.95
35	3429541		Switch, Water Temperature		Appelez-nous	-
36	WP3428970		Screw, Timer Mounting (2)   (Replaces: 3428970)				$ 9.82
38	3428934		Screw, Pump Mtg. (2)		Appelez-nous	-
39	3429225		Panel, Console		Appelez-nous	-
40	689559		Nut, Push-in (4)		Appelez-nous	-
42	WP3357331		Clamp, Drain Hose   (Replaces: 3357331)				$ 6.80
44	100092762		Blade, Timer Knob   (Replaces: 64140)				$ 28.52
45	3347726		Knob, Timer		Appelez-nous	-
47	3352528		Knob, Control		Appelez-nous	-
49	3428526		Grommet, Pump (3)		Appelez-nous	-
50	3428933		Spacer, Pump (3)		Appelez-nous	-
51	3429942		Screw		Appelez-nous	-
52	3429534		Clip, Coil (2)		Appelez-nous	-
53	3429941		Screw		Appelez-nous	-
54	3429706		Shield, Lid Switch		Appelez-nous	-
55	3428014		Screw		Appelez-nous	-
56	3429923		Washer		Appelez-nous	-
57	63795		Cap, End. (r.h.)				$ 14.10
58	63789		Cap, End (l.h.)		Appelez-nous	-
59	3428033		Screw (4)		Appelez-nous	-
60	WP388326		Screw (panel To Top)   (Replaces: 3353145)				$ 7.30
61	3429707		Extrusion, Console To Top		Appelez-nous	-
