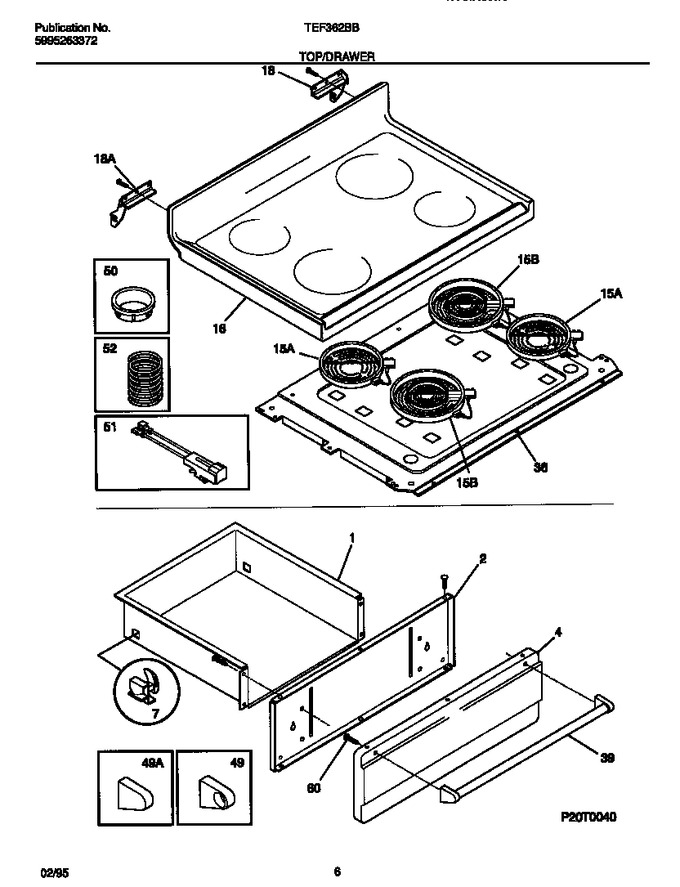

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316011501		Drawer-utility		Appelez-nous	-
2	316063503		Shield-panel		Appelez-nous	-
4	316056209		Panel-drawer, Black		Appelez-nous	-
4	08067785		Screw, Hex Washer Head, 8-18(ab) X 1/2 (not Illustrated)		Appelez-nous	-
7	3051163		Glide,drawer ,rear			Immediately	$ 19.41
15	318198817		Element, Surface, Coil, Small/6 Inch, W/limit Switch   (Replaces: 316010200)			Immediately	$ 192.78
15	316049700		Element-surface, Dual Coil, 8 Inch, W/limit Switch		Appelez-nous	-
15	5303305630		Limiter Switch Dual, Dual Coil (not Illustrated)		Appelez-nous	-
15	5303305628		Limiter Switch, Small/6 Inch (not Illustrated)		Appelez-nous	-
16	5303271891		Gusset-top Mtg, Rh (not Illustrated)		Appelez-nous	-
16	5303271892		Gusset-top Mtg, Lh (not Illustrated)		Appelez-nous	-
16	316035527		Main Top Assy, Glass/steel, Enamel, Black		Appelez-nous	-
18	5303273063		Hinge-main Top (lh)				$ 48.41
18	5303273062		Hinge-main Top (rh)		Appelez-nous	-
18	5303288567		Screw, 8-18 X 3/8, (4) (not Illustrated)		Appelez-nous	-
36	316023301		Clip-spring, Element Mtg, (4) (not Illustrated)		Appelez-nous	-
36	316077901		Panel-element Mtg, Glass Top		Appelez-nous	-
36	316041001		Stud-index, Top Element (not Illustrated)		Appelez-nous	-
39	316008306		Handle Ov Door, Stainless		Appelez-nous	-
49	5303307192		End Cap-handle, Black, Rh		Appelez-nous	-
49	5303307193		End Cap-handle, Black, Lh		Appelez-nous	-
50	316072100		Bushing, Wire		Appelez-nous	-
51	316034801		Light-indicator		Appelez-nous	-
52	316078100		Spring-element Mtg		Appelez-nous	-
*62212	5309951550		Cleaner-cooktop		Appelez-nous	-
*62213	5303288574		Screw, Truss Head, 8-10 X 3/8		Appelez-nous	-
*62214	5303281584		Screw, Truss Head, 8-18 X 1/2		Appelez-nous	-
*62215	316078000		Terminal-shield		Appelez-nous	-
*62216	316035700		Lens-light/lamp, Indicator		Appelez-nous	-
