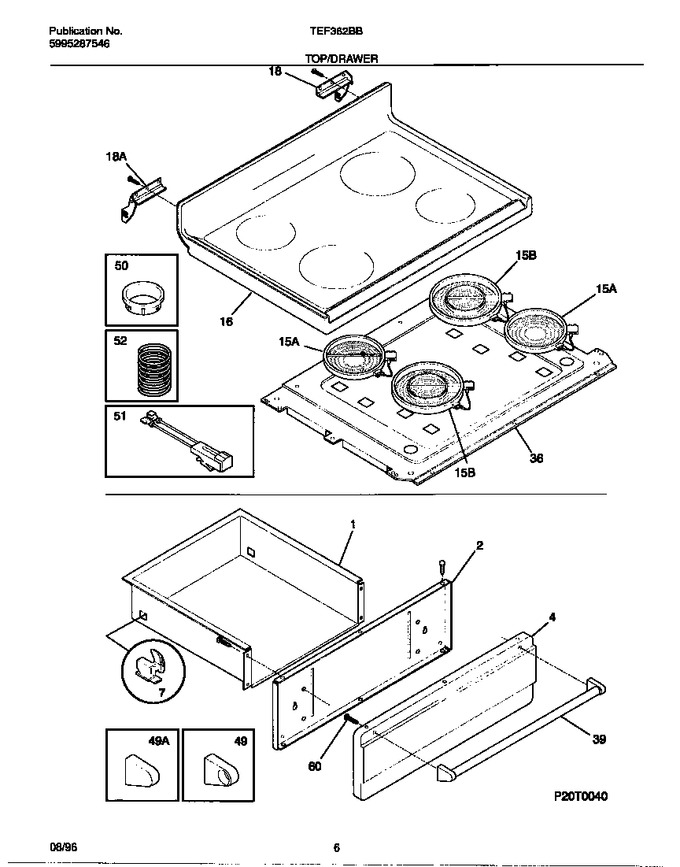

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316011501		Drawer-utility		Appelez-nous	-
2	316063503		Shield-panel		Appelez-nous	-
4	316056209		Panel-drawer, Black		Appelez-nous	-
4	08067785		Screw, Hex Washer Head, 8-18(ab) X 1/2 (not Illustrated)		Appelez-nous	-
7	3051163		Glide,drawer ,rear			Immediately	$ 19.41
15	316049701		Element-surface, Dual Coil, 8 Inch, 2100w/700w		Appelez-nous	-
15	318198817		Element-surface, 1200 W, Small/6 Inch   (Replaces: 316010203)			Immediately	$ 192.78
16	316035585		Main Top		Appelez-nous	-
18	5303273063		Hinge-main Top (lh)				$ 48.41
18	5303273062		Hinge-main Top (rh)		Appelez-nous	-
18	3203618		Rivet-pop, Warning-plate (not Illustrated)		Appelez-nous	-
36	316023301		Clip-spring, Element Mtg, (4) (not Illustrated)		Appelez-nous	-
36	316077901		Panel-element Mtg, Glass Top		Appelez-nous	-
36	316041001		Stud-index, Top Element (not Illustrated)		Appelez-nous	-
39	316008306		Handle Ov Door, Stainless		Appelez-nous	-
49	5303307193		End Cap-handle, Black, Lh		Appelez-nous	-
49	5303307192		End Cap-handle, Black, Rh		Appelez-nous	-
50	316072100		Bushing, Wire		Appelez-nous	-
51	316034801		Light-indicator		Appelez-nous	-
52	316078100		Spring-element Mtg		Appelez-nous	-
60	316089500		Screw-drawer Handle, 10-16 X .486, (2)				$ 13.46
*76810	3131903		Bumper				$ 55.36
*76811	316519700		Screw, Cup Pt, 8-18 X 3/8, Manifold Pnl   (Replaces: 316021108)				$ 10.02
*76812	316078000		Terminal-shield		Appelez-nous	-
*76813	5303280311		Screw, Waf Hd Sdr, 10-32 X 5/16				$ 6.62
*76814	5303288567		Screw, 8-18 X 3/8, (4)		Appelez-nous	-
*76815	5303288574		Screw, Truss Head, 8-10 X 0.375		Appelez-nous	-
*76816	5309951550		Cleaner-cooktop		Appelez-nous	-
