01 - Backguard Parts


02 - Electric Components


03 - Gas Components

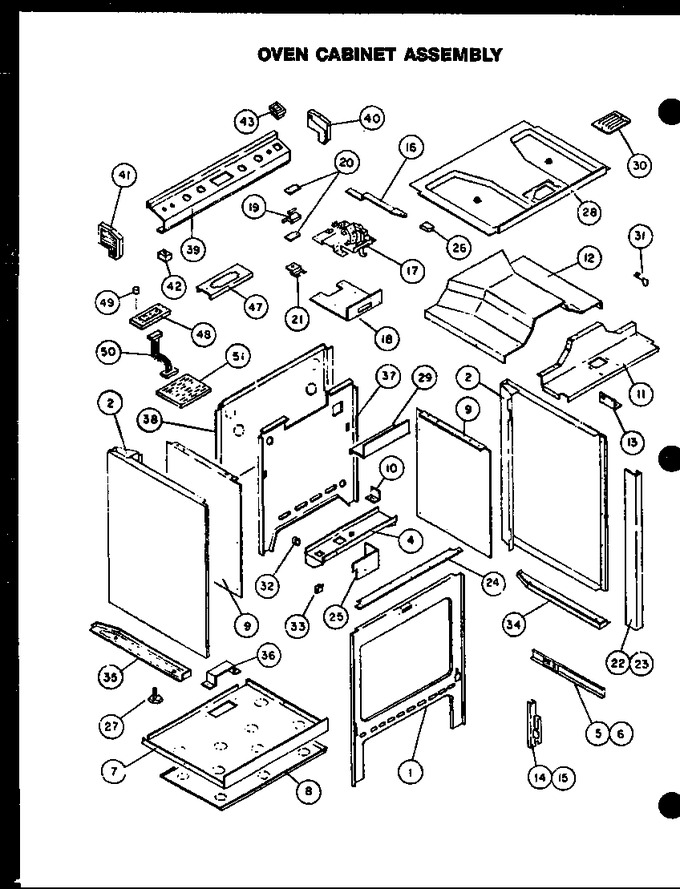

04 - Oven Cabinet Assy


05 - Oven Door Parts


06 - Page 1


07 - Sealed Burner Parts


08 - Storage Drawer Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	302710W		Panel, Side (wht)		Appelez-nous	-
2	302710L		Panel, Side (alm)		Appelez-nous	-
4	0058890		Shelf, Gas Valve		Appelez-nous	-
5	0300475		Track, Storage Drawer-r.h.		Appelez-nous	-
6	Y0300474		Track, Storage Drawer-l.h.		Appelez-nous	-
7	Y0058896		Insul, Ret.-bottom		Appelez-nous	-
8	Y0063706		Shield, Heat		Appelez-nous	-
9	Y0058999		Insulation Retainer, Side		Appelez-nous	-
10	0053182		Bracket, Gas Valve		Appelez-nous	-
11	Y0300626		Insulation Retainer, Top Frnt.		Appelez-nous	-
12	Y0300627		Insulation Retainer, Top		Appelez-nous	-
13	0300231		Bracket		Appelez-nous	-
14	Y0066954		Kit, Door Hinge (rh-ss)		Appelez-nous	-
15	Y0066952		Kit, Door Hinge (lh-hs)		Appelez-nous	-
16	301127B		Latch Arm		Appelez-nous	-
17	Y0063733		Latch Assembly		Appelez-nous	-
18	Y0058918		Bracket, Latch Mtg.		Appelez-nous	-
19	Y0065780		Switch, Clean Circuit				$ 11.77
20	Y0091523		Insulation, Esm		Appelez-nous	-
21	Y0068091		Bracket, Switch Mounting		Appelez-nous	-
22	Y0301639		Trim, Side Panel, Lh		Appelez-nous	-
23	Y0301639		Trim, Side Panel, Lh		Appelez-nous	-
25	Y0058916		Cover, Electrical		Appelez-nous	-
26	0300734		Knob, Latch		Appelez-nous	-
27	Y0300585		Leg, Leveling		Appelez-nous	-
28	302482E		Burner Box		Appelez-nous	-
29	Y0058834		Cover, Elec. Wires		Appelez-nous	-
30	0062840		Cover Plate Latch		Appelez-nous	-
31	Y0068513		Clamp, Wire-insulate		Appelez-nous	-
32	Y0042659		Snap Bushing		Appelez-nous	-
33	Y0091587		Cable, Clip Esm		Appelez-nous	-
34	Y0058991		Brace, Leveling Leg (lt)		Appelez-nous	-
35	Y0058992		Brace, Leveling Leg (lt)		Appelez-nous	-
36	Y0058878		Cover, Ig/bake Burner		Appelez-nous	-
37	Y0058994		Retainer, Rear Insulation		Appelez-nous	-
38	0058909		Rear Backguard & Cover Plate		Appelez-nous	-
39	0303241		Control Panel		Appelez-nous	-
40	0302985		End Cap, Control Panel, Rh		Appelez-nous	-
41	0302984		End Cap, Control Panel, Lh		Appelez-nous	-
NI	Y0065664		Screw, Tt 23 4-40 X 5/8		Appelez-nous	-
NI	Y0303187		Plenum, Top		Appelez-nous	-
NI	0303568		Plenum, Top Front		Appelez-nous	-
NI	Y0303208		Plenum, Wrapper R.h.		Appelez-nous	-
NI	0303210		Wrapper Rh Side		Appelez-nous	-
NI	Y0303186		Plenum, Bottom		Appelez-nous	-
