01 - Broil Box/inner Oven Cavity


02 - Control Panel


03 - Door


04 - Drawer


05 - Electrical Components


06 - Gas Supply


07 - Main Top


08 - Outer Cavity/latch


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart

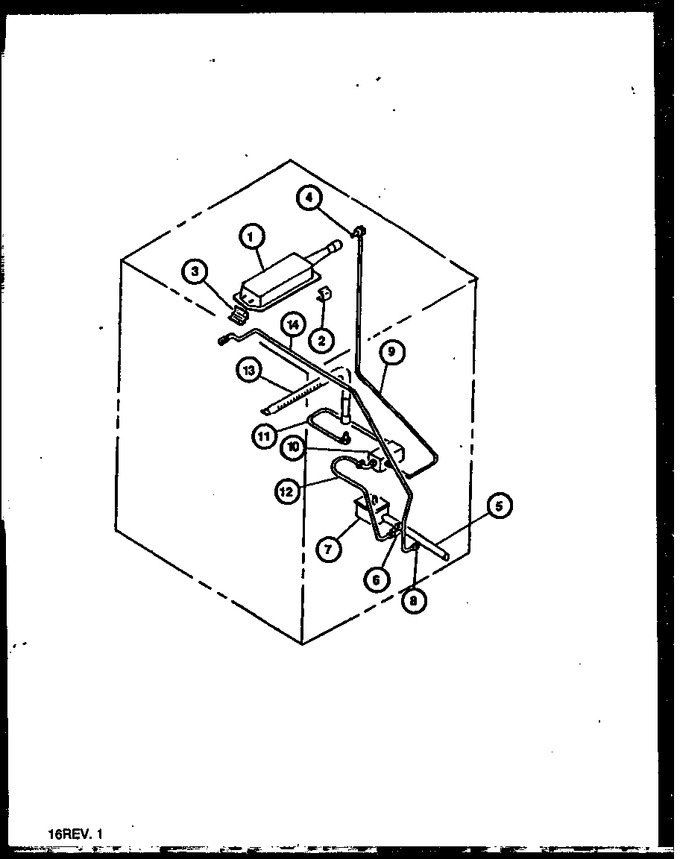

1	Y0060691		Assy, Br. Burner		Appelez-nous	-
2	Y0303112		Bracket Ignitor Mtg		Appelez-nous	-
2	0063785		Bracket, Ignitor		Appelez-nous	-
3	Y0060687		Bracket, Mtg. Br. Support		Appelez-nous	-
4	Y0063061		Orifice, No.58 Lp		Appelez-nous	-
4	Y0063060		Orifice Spud, Nat. Gas No.50		Appelez-nous	-
5	0303247		Inlet Pipe		Appelez-nous	-
6	Y0301361		Valve, Shut-off		Appelez-nous	-
7	Y0063684		Regulator-5``/10`` Side Inlet		Appelez-nous	-
8	Y0303219		Fitting 1/4 Npt X 3/8 Comp		Appelez-nous	-
9	Y0300687		Kit, Orifice,tubing,brkt		Appelez-nous	-
10	Y0300664		Valve, Gas		Appelez-nous	-
11	Y0300685		Tubing, Oven Burner		Appelez-nous	-
12	Y0300684		Tubing, Inlet To Gas Valve		Appelez-nous	-
13	Y0063709		Oven Burner		Appelez-nous	-
14	Y0304630		Tubing, Inlet To Manifold		Appelez-nous	-
14	Y0303220		Tubing, Inlet To Manifold		Appelez-nous	-
NI	Y0068513		Clamp, Wire-insulate		Appelez-nous	-
NI	0042415		Pipe Plug 1/8-27 Npt		Appelez-nous	-
NI	0302509		Tubing, Inlet To Manifold, Lef		Appelez-nous	-
